Vijay Sales Corporation
VS MS Socket Forged Threaded 1000
VS MS Socket Forged Threaded 1000
Regular price
Rs. 8.60
Regular price
Rs. 20.00
Sale price
Rs. 8.60
Unit price
/
per
Couldn't load pickup availability
VS MS Forged Socket Threaded 1000 LBS
Robust and Reliable Pipe Fitting for High-Pressure Applications
Brand: VS | Material: High-Grade Forged Mild Steel
Class: 1000 LBS | Thread Type: BSP
Compliance: IS:1239 (Part 2) 2011 / ASME B16.11-2009
The VS MS Forged Socket Threaded 1000 LBS is engineered to provide secure and leak-proof connections in high-pressure piping systems. Its robust construction and precise threading make it an ideal choice for various industrial applications, ensuring durability and performance under demanding conditions.
Common Applications:
- Fire Fighting Systems
- HVAC Systems
- Oil & Gas Industries
- Petrochemical Plants
- High-Pressure Lines

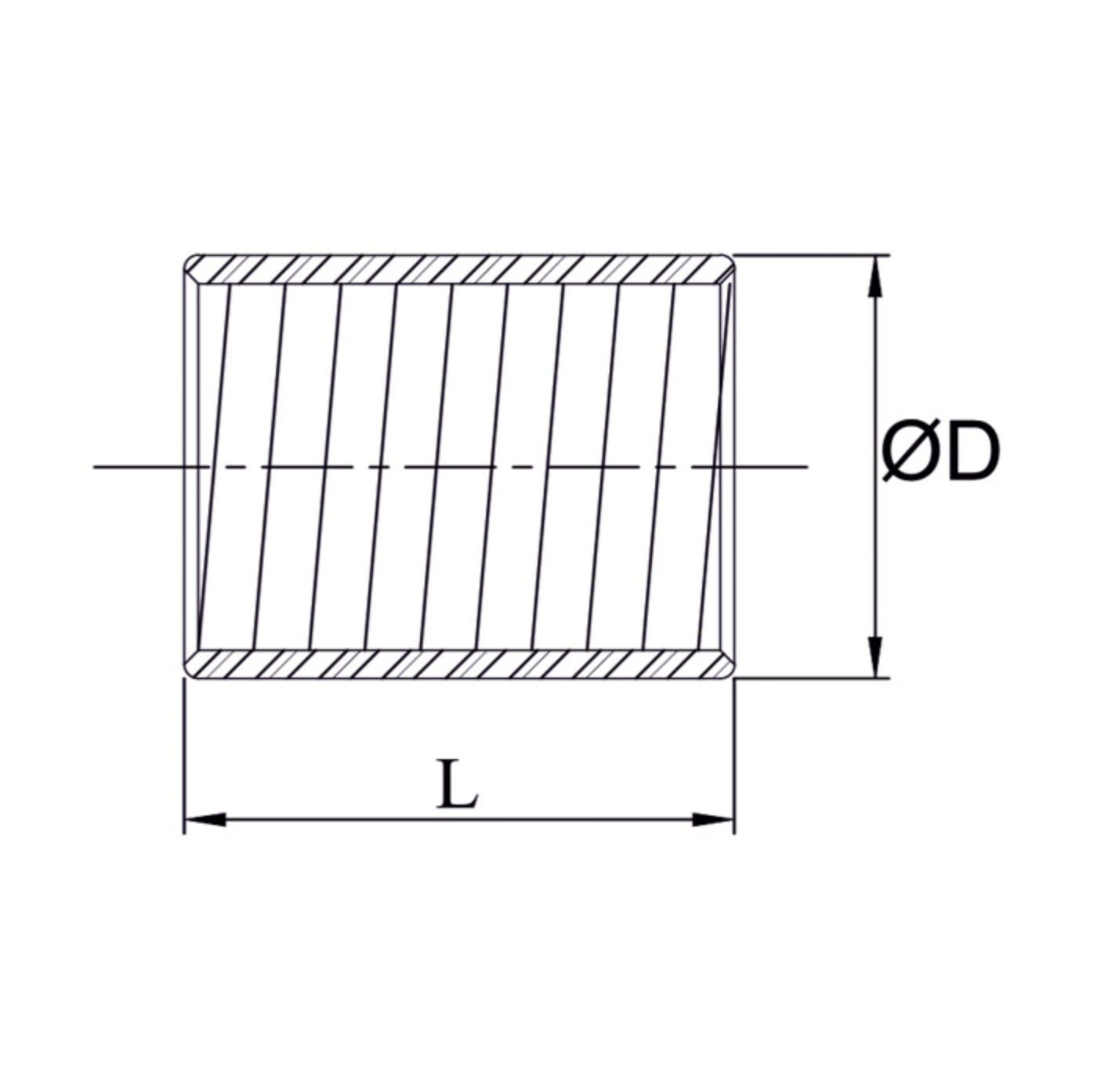

| Nominal Size | Minimum Length (L) | Minimum Outer Diameter (D) |
|---|---|---|
| 1/8" (6 mm) | 19.00 mm | 15.00 mm |
| 1/4" (8 mm) | 27.00 mm | 18.50 mm |
| 3/8" (10 mm) | 28.00 mm | 22.00 mm |
| 1/2" (15 mm) | 37.00 mm | 27.00 mm |
| 3/4" (20 mm) | 39.00 mm | 32.50 mm |
| 1" (25 mm) | 46.00 mm | 39.50 mm |
| 1.1/4" (32 mm) | 51.00 mm | 49.00 mm |
| 1.1/2" (40 mm) | 51.00 mm | 56.00 mm |
| 2" (50 mm) | 60.00 mm | 68.00 mm |
| 2.1/2" (65 mm) | 69.00 mm | 84.00 mm |
| 3" (80 mm) | 75.00 mm | 98.00 mm |
| 4" (100 mm) | 87.00 mm | 124.00 mm |
All dimensions are in MM. Material is available in BSP threaded end connections.
