Vijay Sales Corporation
VS MS Hex Nipple Threaded 1000
VS MS Hex Nipple Threaded 1000
Regular price
Rs. 9.89
Regular price
Rs. 23.00
Sale price
Rs. 9.89
Unit price
/
per
Couldn't load pickup availability

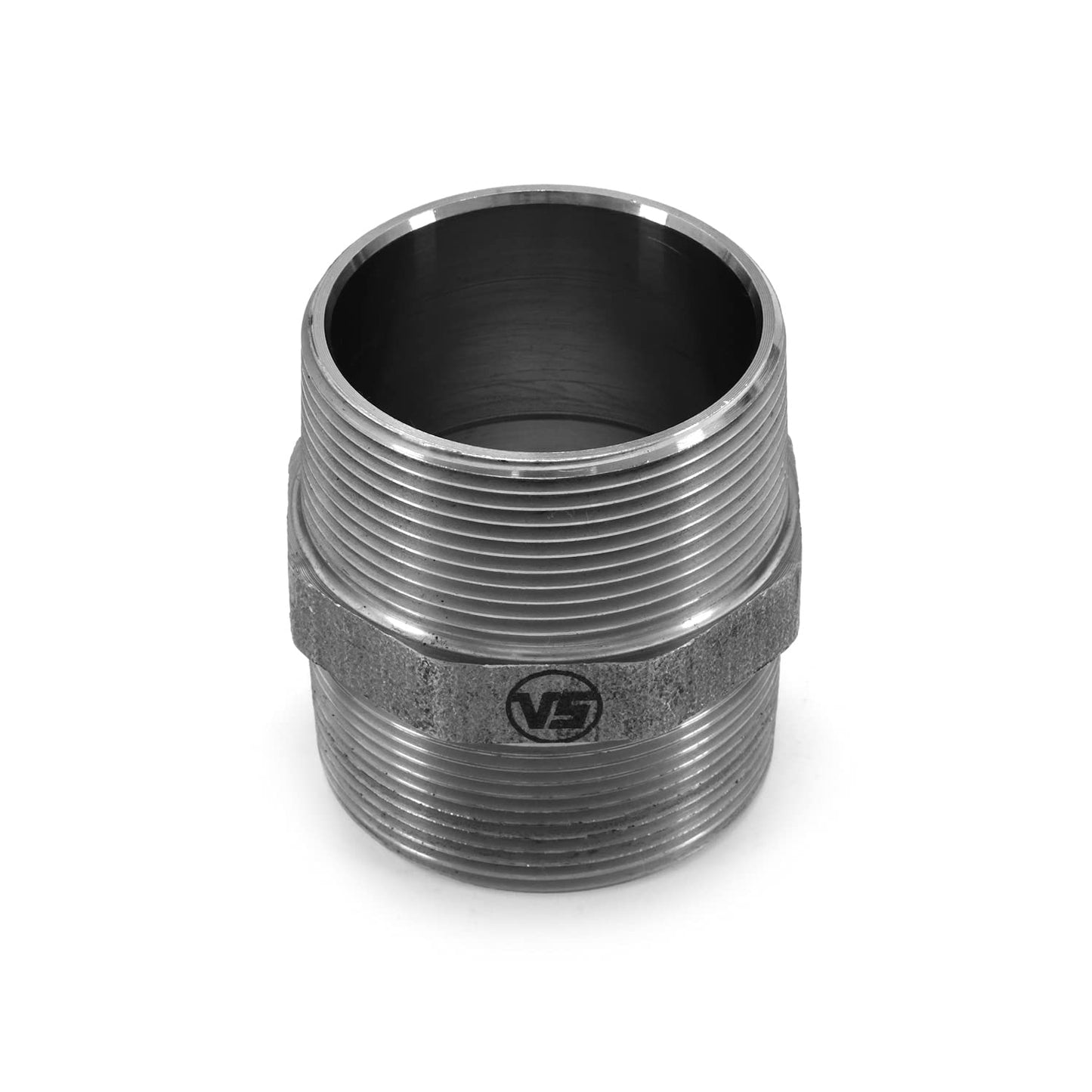

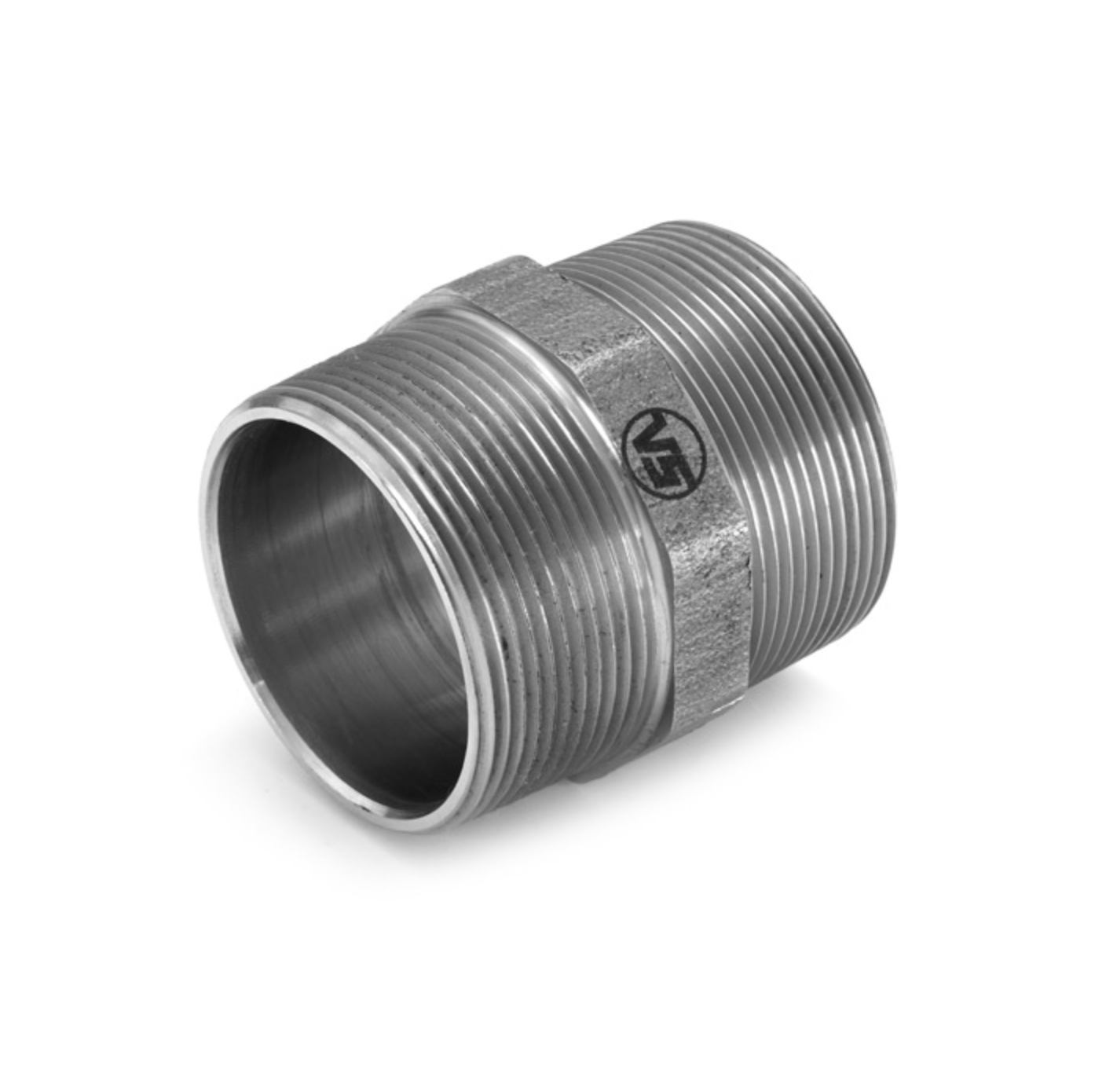

VS MS Forged Hex Nipple Threaded 1000 LBS
High-Strength Pipe Connector for Industrial Applications
Brand: VS | Material: High-Grade Forged Mild Steel
Class: 1000 LBS | Thread Type: BSP
The VS MS Hex Nipple Threaded 1000 is a high-quality, forged mild steel fitting designed for robust performance in high-pressure piping systems. This hexagonal nipple features male threading on both ends, facilitating secure and leak-proof connections between female-threaded pipes or fittings.
Common Applications:
-
Plumbing Systems
-
Industrial Piping
-
Automotive Systems
Ā

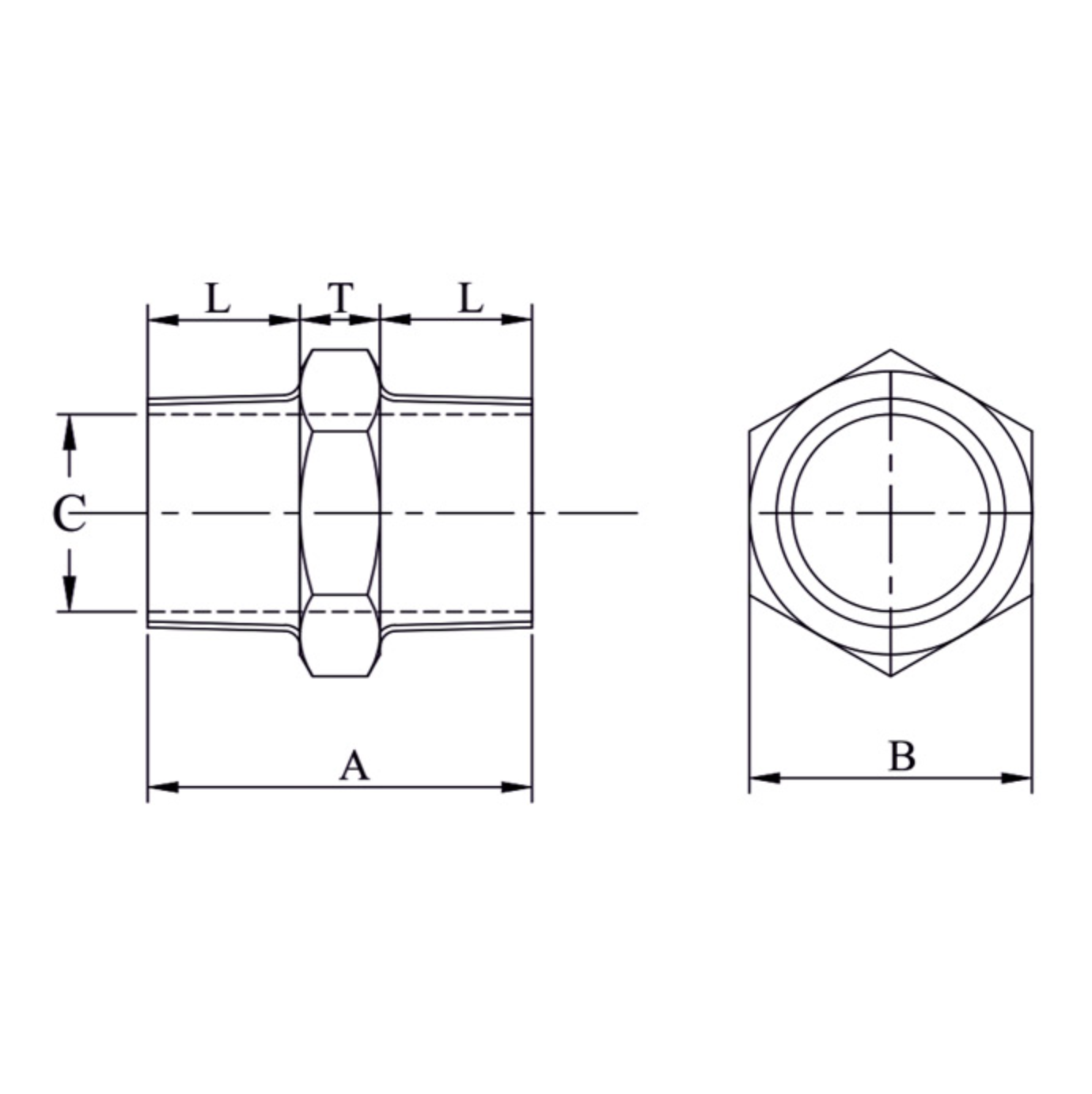

| Nominal Size of Outlet | Min. Length of Thread (L) | Thickness of Hexagon (T) | Minimum Overall Length (A) | Minimum Diameter of Bore (C) | Width Across Flats of Hexagon (B) |
|---|---|---|---|---|---|
| 3/8" (10 mm) | 12.50 mm | 8.00 mm | 33.00 mm | 9.50 mm | 17.90 mm |
| 1/2" (15 mm) | 17.50 mm | 8.00 mm | 43.00 mm | 12.50 mm | 23.00 mm |
| 3/4" (20 mm) | 19.00 mm | 10.00 mm | 48.00 mm | 19.00 mm | 27.80 mm |
| 1" (25 mm) | 21.00 mm | 10.00 mm | 52.00 mm | 25.00 mm | 35.30 mm |
| 1.1/4" (32 mm) | 24.00 mm | 11.00 mm | 59.00 mm | 32.00 mm | 47.20 mm |
| 1.1/2" (40 mm) | 24.00 mm | 13.00 mm | 61.00 mm | 38.00 mm | 52.00 mm |
| 2" (50 mm) | 27.00 mm | 14.00 mm | 68.00 mm | 51.00 mm | 61.10 mm |
