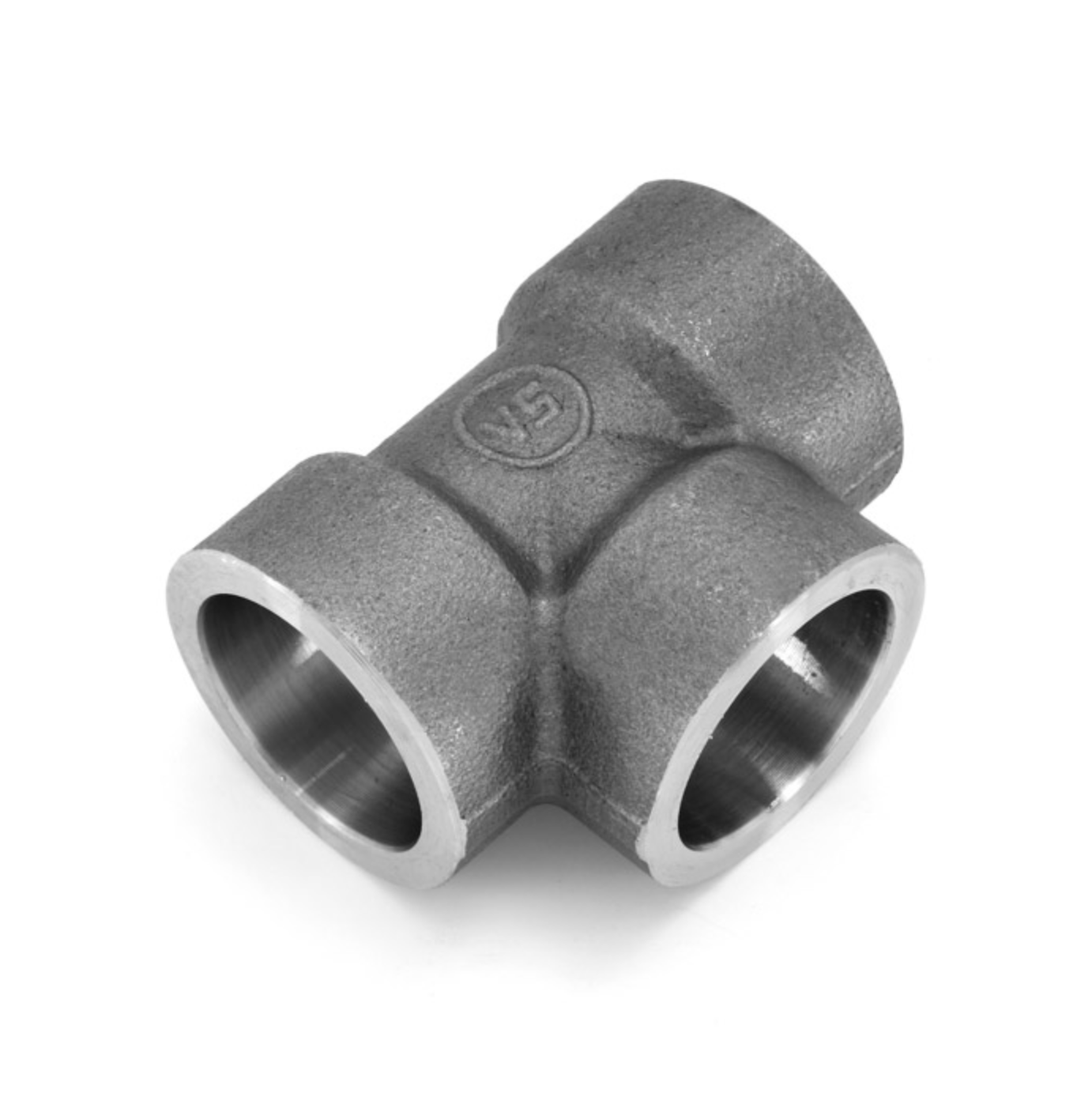

VS MS Tee Forged Socket Weld 3000 LBS

High-Pressure Forged Steel Tee for Secure and Efficient Piping Systems

Brand: VS | Material: High-Grade Forged Mild Steel
Class: 3000 LBS | Connection Type: Socket Weld
Compliance: ASME B16.11 / IS:1239 (Part 2) 2011

The VS MS Forged Socket Weld Tee 3000 LBS is designed for high-pressure fluid and gas distribution in industrial piping systems. Manufactured from premium forged mild steel, this tee fitting ensures a robust and leak-proof joint, making it an ideal choice for oil & gas, chemical, HVAC, and fire protection systems.

Common Applications:

Oil & Gas Pipelines
Chemical & Petrochemical Processing
HVAC & Fire Protection Systems
Industrial & Manufacturing Plants
Power Plants & Heavy Engineering

Nominal Size	Socket Bore Dia (B) Min.	Socket Bore Dia (B) Max.	Bore Dia of Fitting Dia (D) Min.	Bore Dia of Fitting Dia (D) Max.	Socket Wall Thickness (C) Min.	Min. Depth of Socket (J) Min.	Center to Bottom of Socket (A) Min.	Center to Bottom of Socket (A) Max.	Body Wall Thickness (G) Min.
1/8”	10.80	11.20	6.10	7.60	3.18	10.50	11.00	12.00	2.41
1/4”	14.20	14.60	8.50	10.00	3.30	10.50	11.00	12.00	3.02
3/8”	17.60	18.00	11.80	13.30	3.50	10.50	13.50	15.00	3.20
1/2”	21.80	22.20	15.00	16.60	4.09	10.50	15.50	17.00	3.73
3/4”	27.20	27.60	20.20	21.70	4.27	13.50	19.00	20.50	3.91
1”	33.90	34.30	25.90	27.40	4.98	13.50	22.50	24.00	4.55
1 1/4”	42.70	43.10	34.30	35.80	5.28	13.50	27.00	29.00	4.85
1 1/2”	48.80	49.20	40.10	41.60	5.54	13.50	32.00	34.00	5.08
2”	61.20	61.70	51.70	53.30	6.04	17.00	38.00	40.00	5.54
2 1/2”	73.90	74.40	61.20	64.20	7.67	18.00	42.00	43.50	7.01
3”	89.80	90.30	76.40	79.40	8.30	18.00	57.00	59.50	7.62
4”	115.20	115.70	100.70	103.80	9.35	19.00	66.50	68.00	8.56

All dimensions are in MM. Material is available in BSP threaded end connections.
