VS MS Elbow Forged Socket Weld 3000 | Vijay Sales Corporation

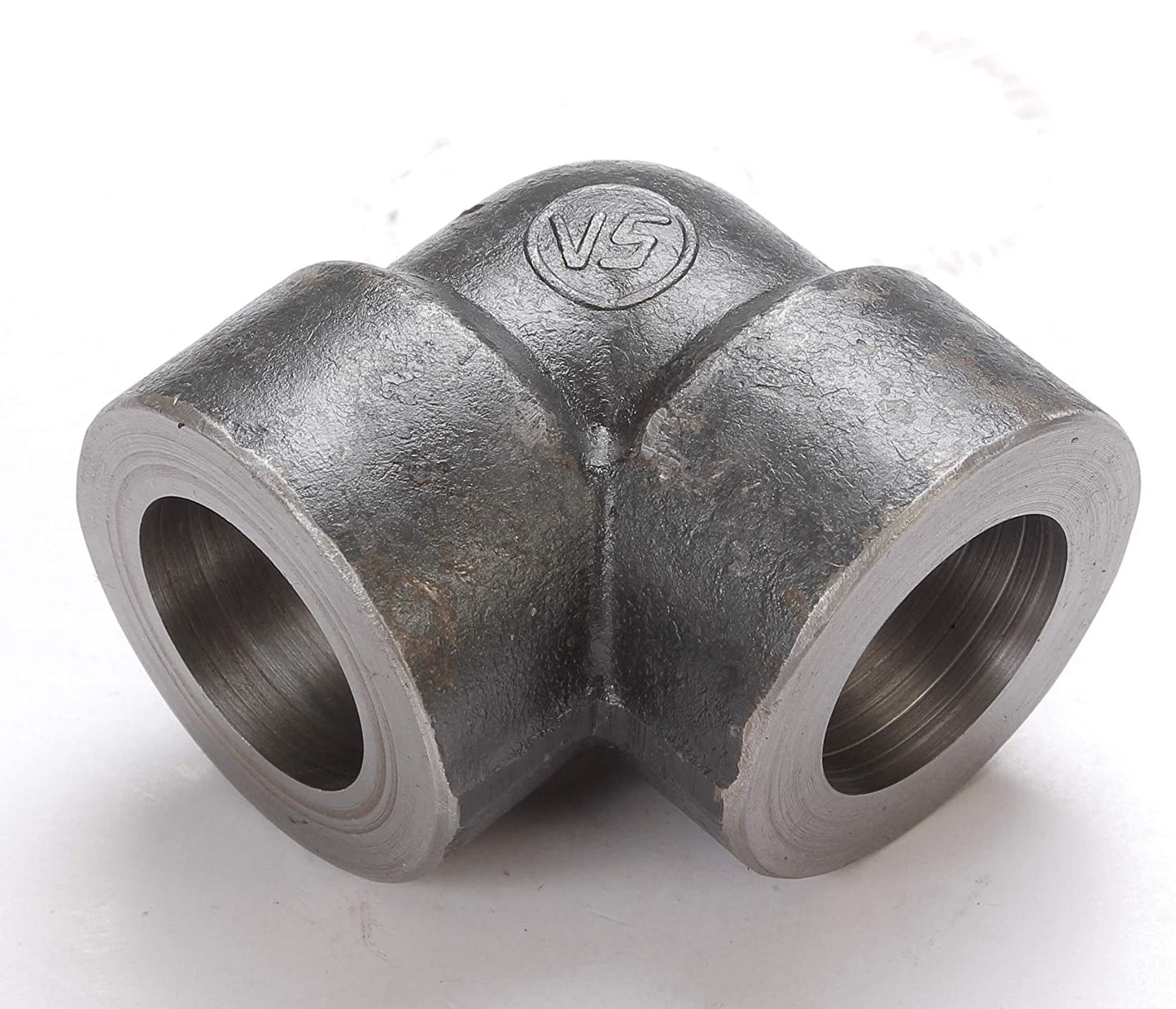

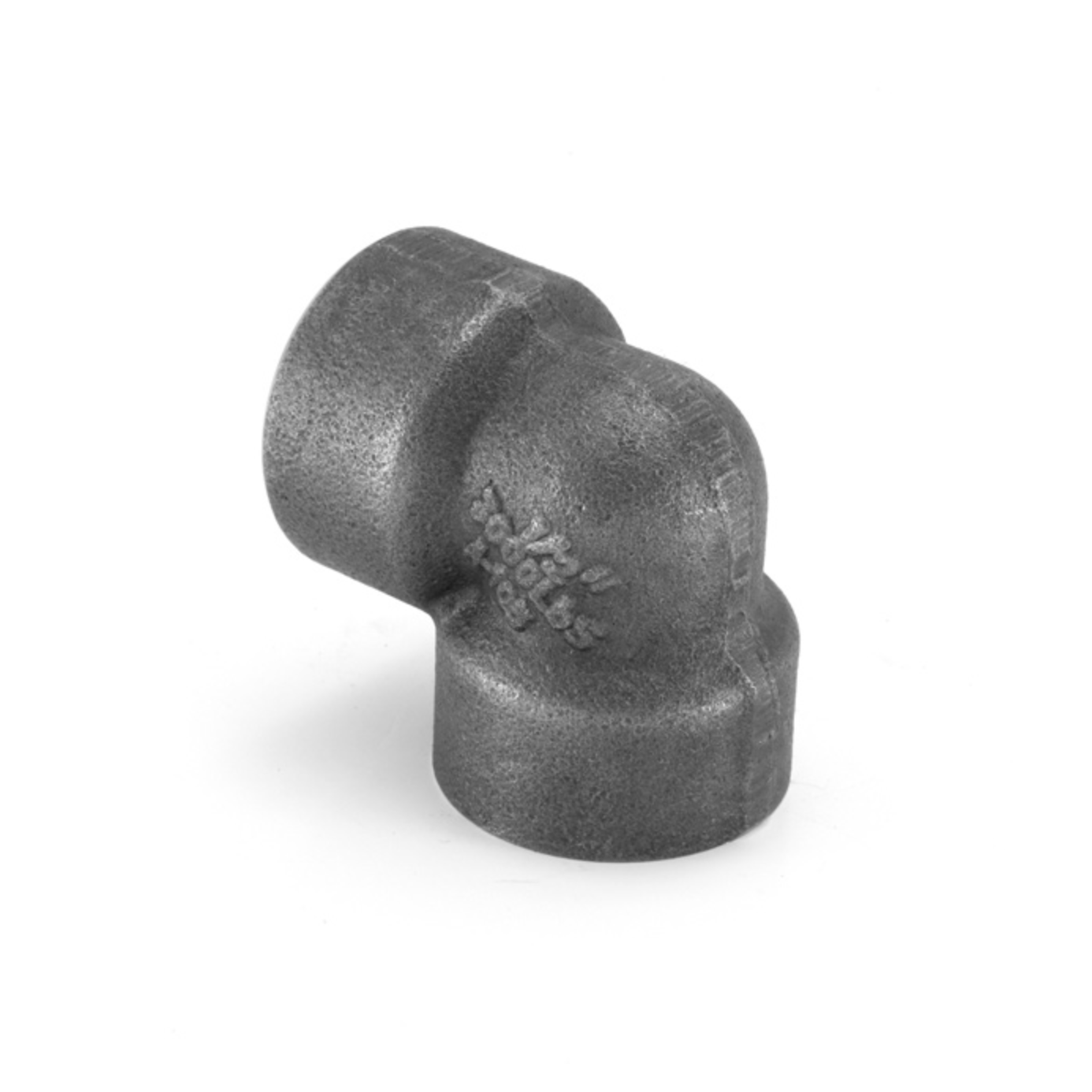

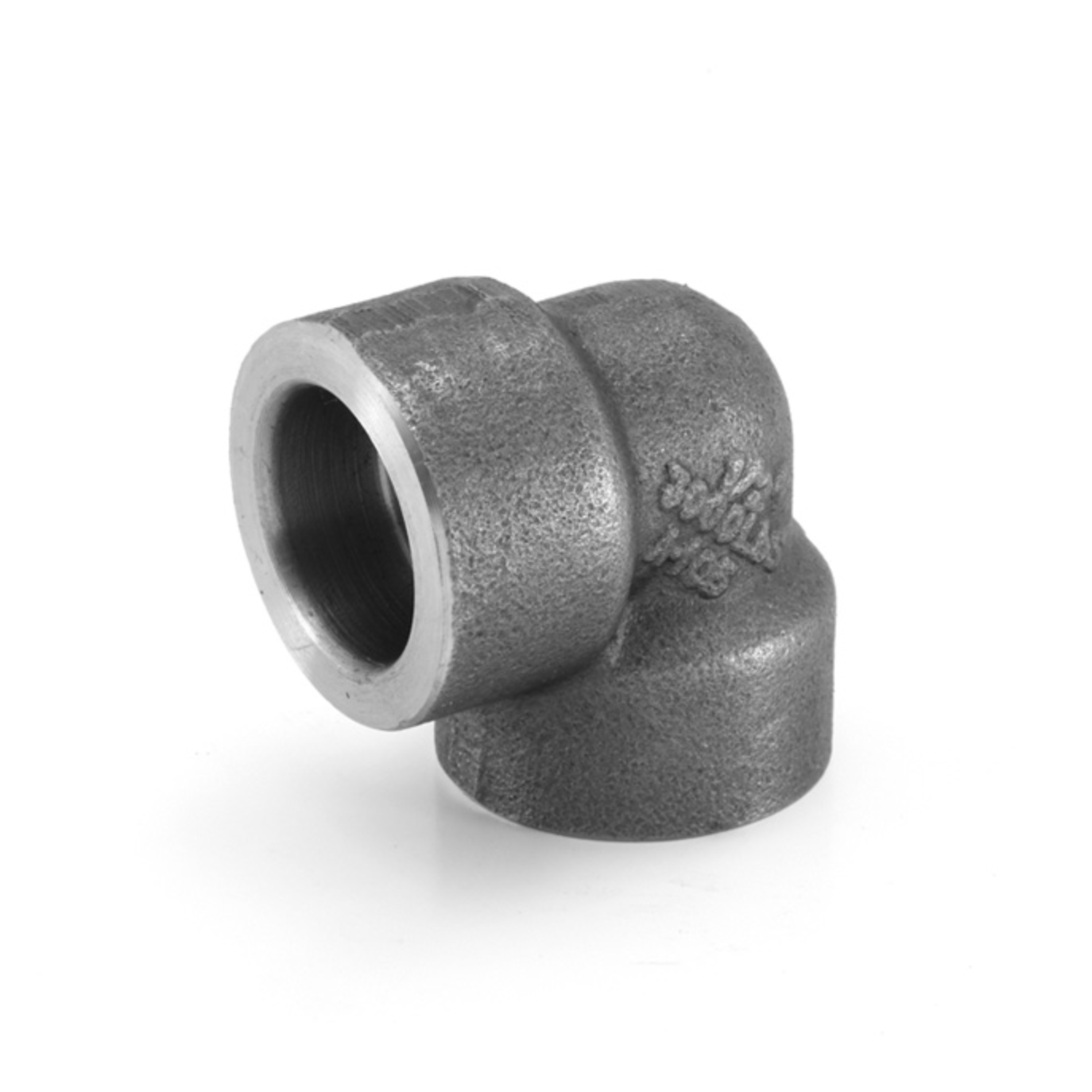

VS MS Elbow Forged Socket Weld 3000 LBS

High-Pressure Forged Steel Elbow for Secure & Durable Piping Systems

Brand: VS | Material: High-Grade Forged Mild Steel
Class: 3000 LBS | Connection Type: Socket Weld
Compliance: ASME B16.11 / IS:1239 (Part 2) 2011

The VS MS Forged Socket Weld Elbow 3000 LBS is built to deliver exceptional strength, precision, and longevityfor high-pressure piping systems. Manufactured from premium forged mild steel, this elbow ensures a secure, leak-proof joint, making it the preferred choice for oil & gas, chemical, fire protection, and HVAC industries.

Common Applications:

Oil & Gas Pipelines
Chemical & Petrochemical Processing
HVAC & Fire Protection Systems
Industrial & Manufacturing Plants
Power Plants & Heavy Engineering

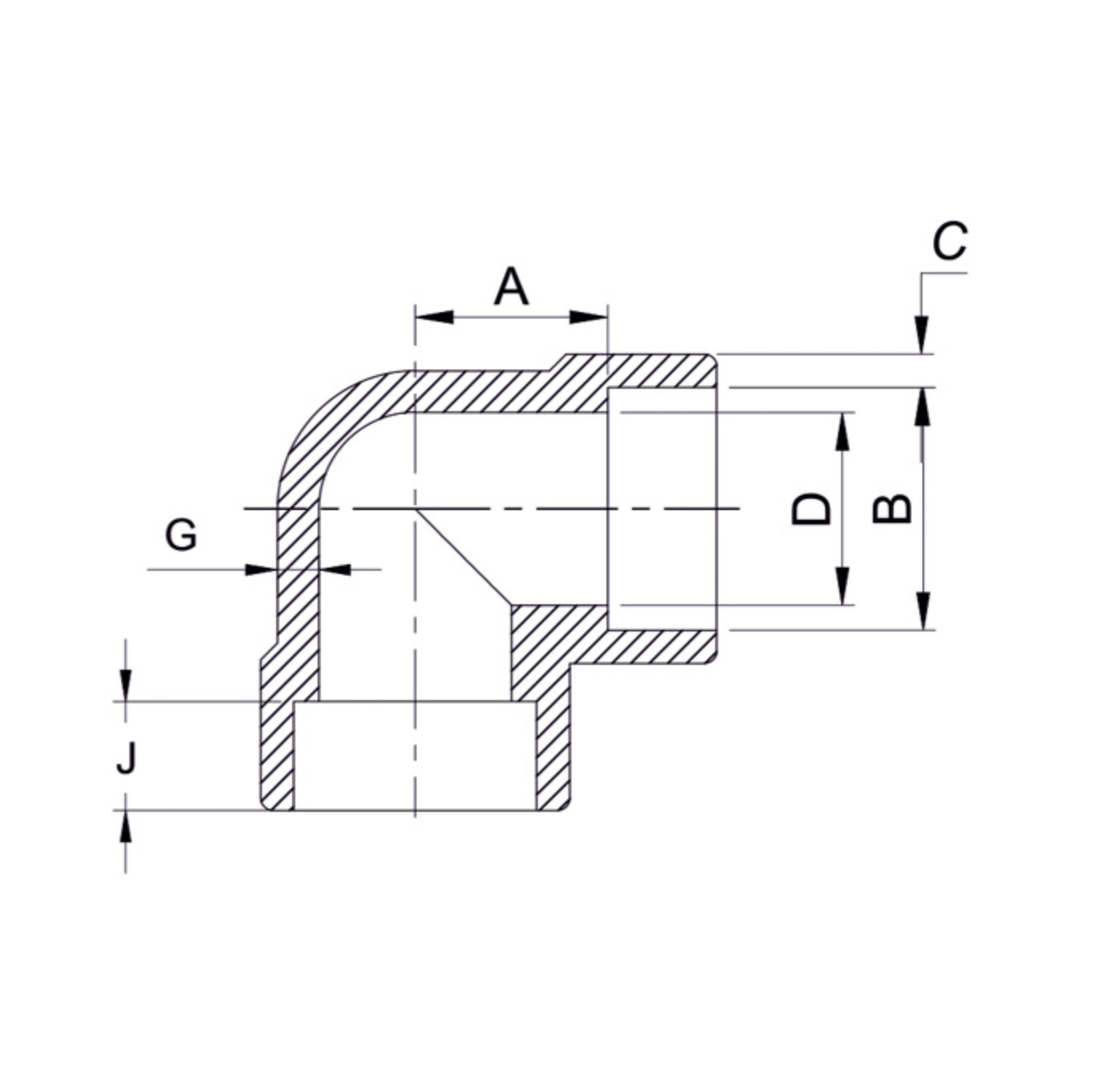

Nominal Size	Socket Bore Dia (B) Min.	Socket Bore Dia (B) Max.	Bore Dia of Fitting Dia (D) Min.	Bore Dia of Fitting Dia (D) Max.	Socket Wall Thickness (C) Min.	Min. Depth of Socket (J) Min.	Center to Bottom of Socket (A) Min.	Center to Bottom of Socket (A) Max.	Body Wall Thickness (G) Min.
1/8”	10.80	11.20	6.10	7.60	3.18	10.50	11.00	12.00	2.41
1/4”	14.20	14.60	8.50	10.00	3.30	10.50	11.00	12.00	3.02
3/8”	17.60	18.00	11.80	13.30	3.50	10.50	13.50	15.00	3.20
1/2”	21.80	22.20	15.00	16.60	4.09	10.50	15.50	17.00	3.73
3/4”	27.20	27.60	20.20	21.70	4.27	13.50	19.00	20.50	3.91
1”	33.90	34.30	25.90	27.40	4.98	13.50	22.50	24.00	4.55
1 1/4”	42.70	43.10	34.30	35.80	5.28	13.50	27.00	29.00	4.85
1 1/2”	48.80	49.20	40.10	41.60	5.54	13.50	32.00	34.00	5.08
2”	61.20	61.70	51.70	53.30	6.04	17.00	38.00	40.00	5.54
2 1/2”	73.90	74.40	61.20	64.20	7.67	18.00	42.00	43.50	7.01
3”	89.80	90.30	76.40	79.40	8.30	18.00	57.00	59.50	7.62
4”	115.20	115.70	100.70	103.80	9.35	19.00	66.50	68.00	8.56

All dimensions are in MM. Material is available in BSP threaded end connections.
