Vijay Sales Corporation

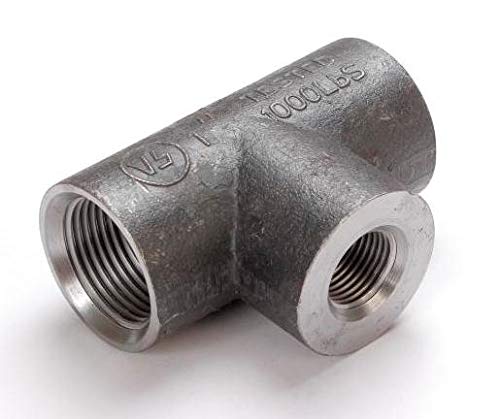

VS MS Forged Reducing Tee Threaded 1000

VS MS Forged Reducing Tee Threaded 1000

Rs. 43.86
Rs. 102.00 Rs. 43.86
Sale Sold out
Size

VS MS Forged Reducing Tee Threaded 1000 LBS

High-Strength Pipe Fitting for Efficient Flow Distribution in Multi-Directional Systems

Brand: VS | Material: High-Grade Forged Mild Steel
Class: 1000 LBS | Thread Type: BSP, BSPT, NPT
Compliance: IS:1239 (Part 2) 2011 / ASME B16.11-2009

Common Applications:

  • Oil & Gas Pipelines
  • Fire Sprinkler & HVAC Systems
  • Petrochemical & Manufacturing Plants
  • Plumbing & Construction



Nominal Size of Outlet Min. Length of Centre to Face (A) Min. Length of Centre to Face (B) Minimum Outer DIA (D) Nominal Size of Outlet Min. Length of Centre to Face (A) Min. Length of Centre to Face (B) Minimum Outer DIA (D)
8×6 21.00 mm 22.00 mm 18.50 mm 40×20 41.00 mm 52.00 mm 56.00 mm
10×6 21.00 mm 24.00 mm 22.00 mm 40×25 48.00 mm 52.00 mm 56.00 mm
10×8 22.00 mm 24.00 mm 22.00 mm 40×32 49.00 mm 52.00 mm 56.00 mm
15×8 25.00 mm 32.00 mm 27.00 mm 50×15 41.00 mm 64.00 mm 68.00 mm
15×10 27.00 mm 32.00 mm 27.00 mm 50×20 44.00 mm 64.00 mm 68.00 mm
20×8 27.00 mm 35.00 mm 32.50 mm 50×25 48.00 mm 64.00 mm 68.00 mm
20×10 29.00 mm 35.00 mm 32.50 mm 50×32 52.00 mm 64.00 mm 68.00 mm
20×15 32.00 mm 35.00 mm 32.50 mm 50×40 56.00 mm 64.00 mm 68.00 mm
25×10 32.00 mm 43.00 mm 39.50 mm 65×40 60.00 mm 76.00 mm 84.00 mm
25×15 35.00 mm 43.00 mm 39.50 mm 65×50 67.00 mm 76.00 mm 84.00 mm
25×20 38.00 mm 43.00 mm 39.50 mm 80×25 60.00 mm 89.00 mm 98.00 mm
32×15 38.00 mm 51.00 mm 49.00 mm 80×32 64.00 mm 89.00 mm 98.00 mm
32×20 41.00 mm 51.00 mm 49.00 mm 80×40 67.00 mm 89.00 mm 98.00 mm
32×25 44.00 mm 51.00 mm 49.00 mm 80×50 73.00 mm 89.00 mm 98.00 mm
40×15 38.00 mm 52.00 mm 56.00 mm 80×65 79.00 mm 89.00 mm 98.00 mm

All dimensions are in MM. Material is available in BSP threaded end connections.
