VS MS Forged Reducing Cross Threaded 1000

VS MS Forged Reducing Cross Threaded 1000

Rs. 95.03
Rs. 221.00 Rs. 95.03
Sale Sold out
Size

VS MS Forged Reducing Cross Threaded 1000 LBS

High-Strength Pipe Fitting for Multi-Directional Flow Distribution

Brand: VS | Material: High-Grade Forged Mild Steel
Class: 1000 LBS | Thread Type: BSP
Compliance: IS:1239 (Part 2) 2011 / ASME B16.11-2009

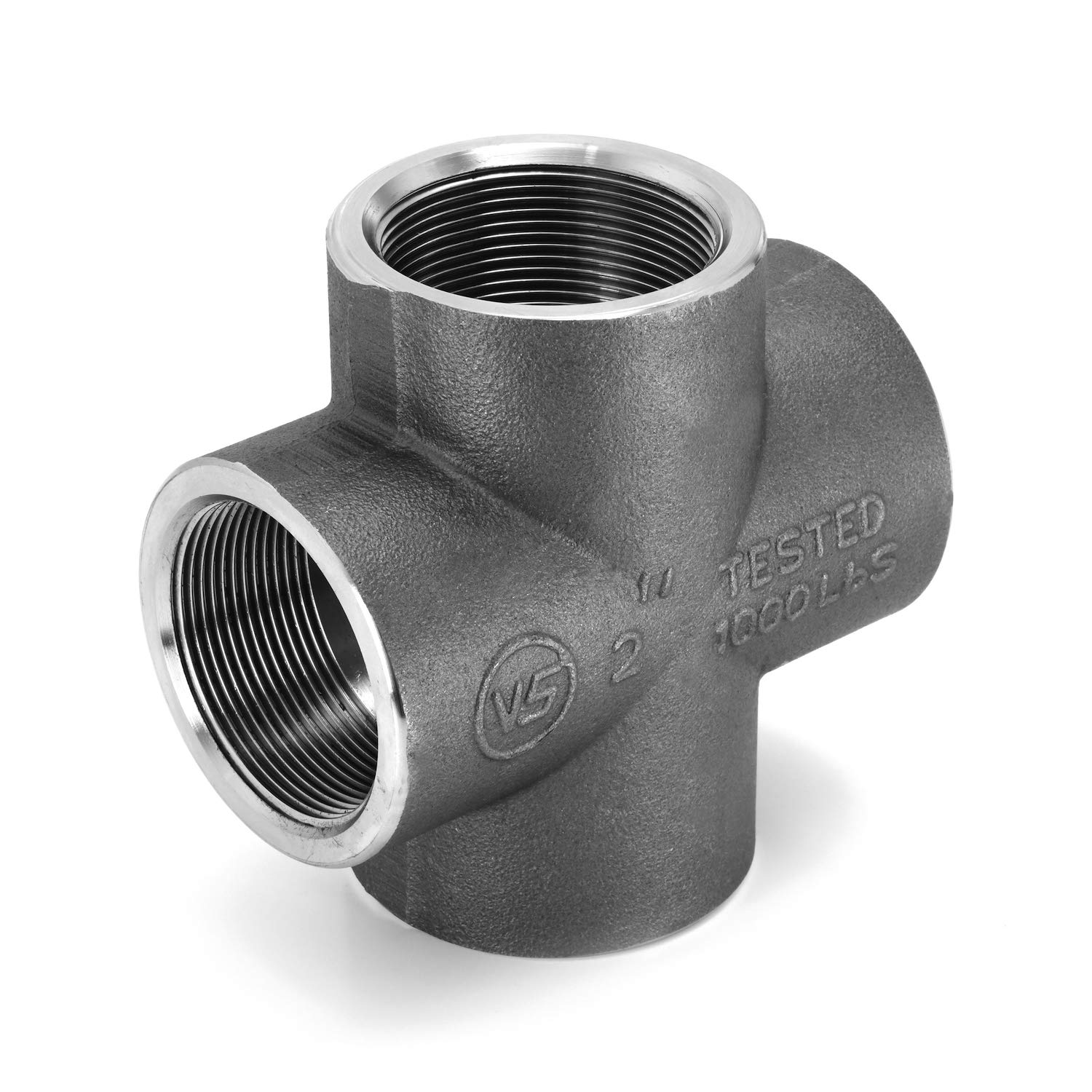

The VS MS Forged Reducing Cross Threaded 1000 LBS is a high-performance pipe fitting designed for secure and efficient fluid distribution across multi-branch piping systems. Engineered from premium forged mild steel, this reducing cross fitting allows for seamless transition between different pipe sizes, ensuring optimized flow control, pressure regulation, and reduced turbulence in high-pressure applications. Its leak-resistant design makes it ideal for industrial, mechanical, and plumbing systems, where precision and durability are crucial.

Common Applications:

  • Oil & Gas Pipelines
  • Fire Sprinkler & HVAC Systems
  • Petrochemical & Chemical Plants
  • Plumbing & Construction

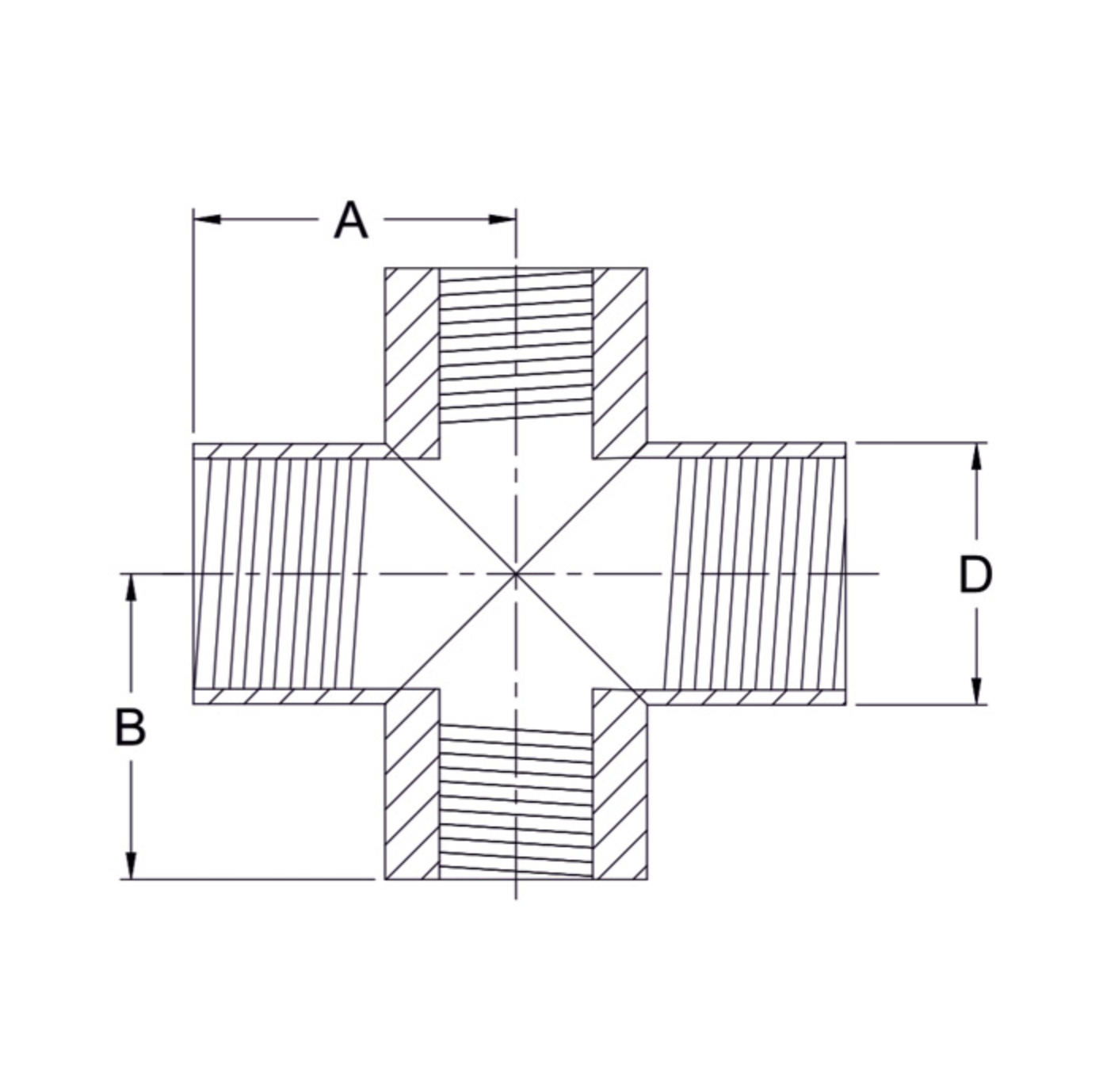

Nominal Size of Outlet Min. Length of Centre to Face (A) Min. Length of Centre to Face (B) Minimum Outer DIA (D) Nominal Size of Outlet Min. Length of Centre to Face (A) Min. Length of Centre to Face (B) Minimum Outer DIA (D)
8×6 21.00 mm 22.00 mm 18.50 mm 40×20 41.00 mm 52.00 mm 56.00 mm
10×6 21.00 mm 24.00 mm 22.00 mm 40×25 48.00 mm 52.00 mm 56.00 mm
10×8 22.00 mm 24.00 mm 22.00 mm 40×32 49.00 mm 52.00 mm 56.00 mm
15×8 25.00 mm 32.00 mm 27.00 mm 50×15 41.00 mm 64.00 mm 68.00 mm
15×10 27.00 mm 32.00 mm 27.00 mm 50×20 44.00 mm 64.00 mm 68.00 mm
20×8 27.00 mm 35.00 mm 32.50 mm 50×25 48.00 mm 64.00 mm 68.00 mm
20×10 29.00 mm 35.00 mm 32.50 mm 50×32 52.00 mm 64.00 mm 68.00 mm
20×15 32.00 mm 35.00 mm 32.50 mm 50×40 56.00 mm 64.00 mm 68.00 mm
25×10 32.00 mm 43.00 mm 39.50 mm 65×40 60.00 mm 76.00 mm 84.00 mm
25×15 35.00 mm 43.00 mm 39.50 mm 65×50 67.00 mm 76.00 mm 84.00 mm
25×20 38.00 mm 43.00 mm 39.50 mm 80×25 60.00 mm 89.00 mm 98.00 mm
32×15 38.00 mm 51.00 mm 49.00 mm 80×32 64.00 mm 89.00 mm 98.00 mm
32×20 41.00 mm 51.00 mm 49.00 mm 80×40 67.00 mm 89.00 mm 98.00 mm
32×25 44.00 mm 51.00 mm 49.00 mm 80×50 73.00 mm 89.00 mm 98.00 mm
40×15 38.00 mm 52.00 mm 56.00 mm 80×65 79.00 mm 89.00 mm 98.00 mm
