VS MS Forged Reducing Bushes Threaded 1000 LBS

Durable & High-Pressure Pipe Fitting for Secure Size Transitions

Brand: VS | Material: High-Grade Forged Mild Steel
Class: 1000 LBS | Thread Type: BSP
Compliance: IS:1239 (Part 2) 2011 / ASME B16.11-2009

The VS MS Forged Reducing Bushes Threaded 1000 LBS is designed for secure and leak-proof pipe size transitions, making it an essential fitting for industrial, plumbing, and mechanical applications. Manufactured from high-quality forged mild steel, it ensures maximum strength, corrosion resistance, and durability in high-pressure environments.

Common Applications:

Oil & Gas Pipelines
HVAC & Plumbing Systems
Fire Protection & Sprinkler Systems
Chemical & Petrochemical Industries
Construction & Industrial Piping

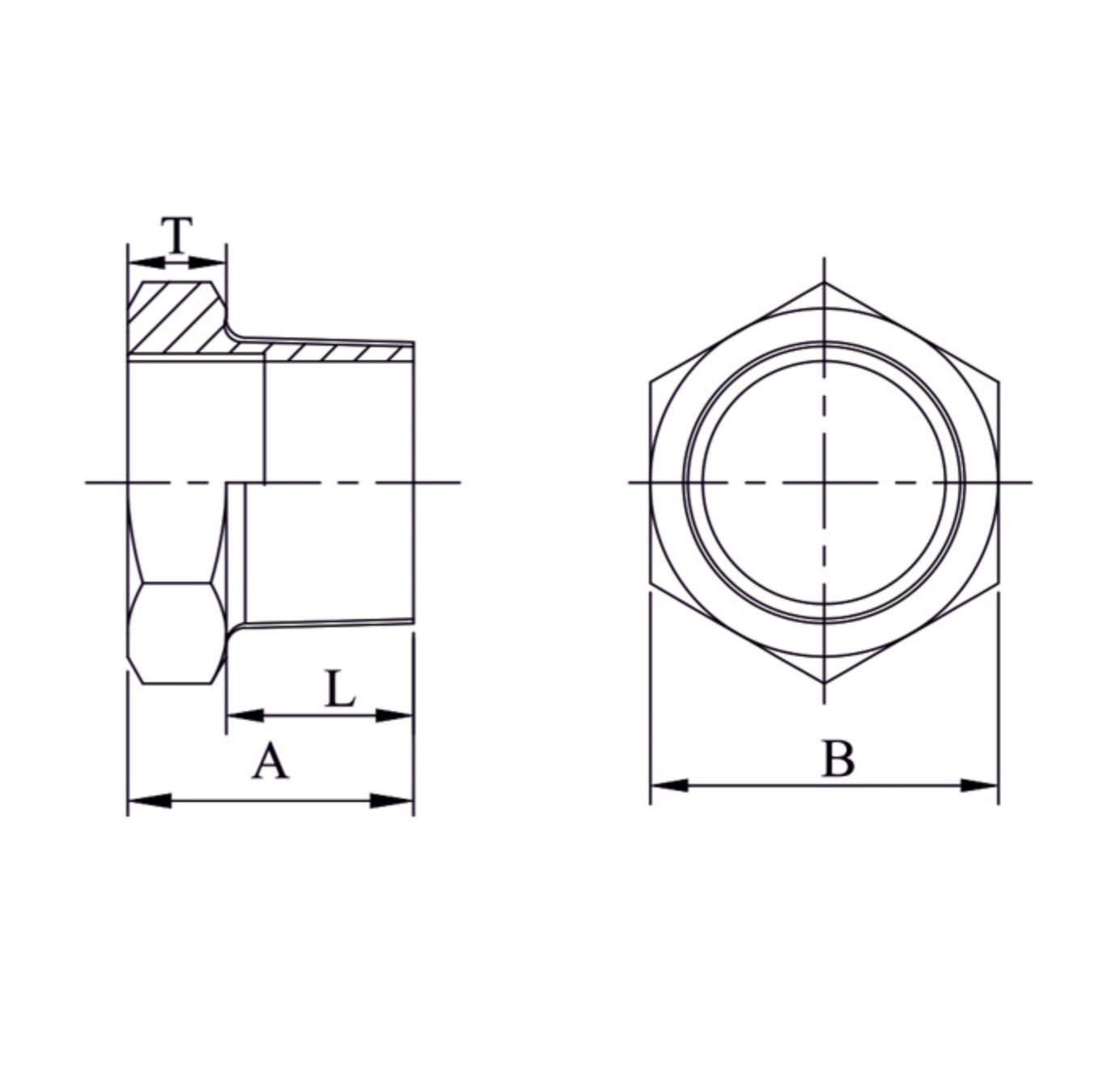

Nominal Size (MM)	Min. Length of Thread (MM)	Thickness of Hexagon (T) (MM)	Overall Length (A) (MM)	Width Across Flats of Hexagon (B) (MM)
8×6	12.50	6.00	18.50	15.50
10×8	12.50	7.00	20.50	17.90
15×8	17.50	8.00	25.50	23.00
15×10	17.50	7.00	25.50	23.00
20×10	19.00	10.00	29.00	27.80
20×15	19.00	10.00	29.00	27.80
25×15	21.00	10.00	31.00	35.30
25×20	21.00	10.00	31.00	35.30
32×15	24.00	11.00	35.00	47.20
32×20	24.00	11.00	35.00	47.20
32×25	24.00	11.00	35.00	47.20
40×20	24.00	13.00	37.00	52.00
40×25	24.00	13.00	37.00	52.00
40×32	24.00	13.00	37.00	52.00
50×25	27.00	14.00	41.00	61.10
50×32	27.00	14.00	41.00	61.10
50×40	27.00	14.00	41.00	61.10
65×32	32.00	16.00	48.00	79.00
65×40	32.00	16.00	48.00	79.00
65×50	32.00	16.00	48.00	79.00
80×40	35.00	19.00	54.00	92.00
80×50	35.00	19.00	54.00	92.00
80×65	35.00	19.00	54.00	92.00

All dimensions are in MM. Material is available in BSP threaded end connections.
