Vijay Sales Corporation
VS MS Crosses Forged Threaded 1000
VS MS Crosses Forged Threaded 1000
Regular price
Rs. 99.76
Regular price
Rs. 232.00
Sale price
Rs. 99.76
Unit price
/
per
Couldn't load pickup availability

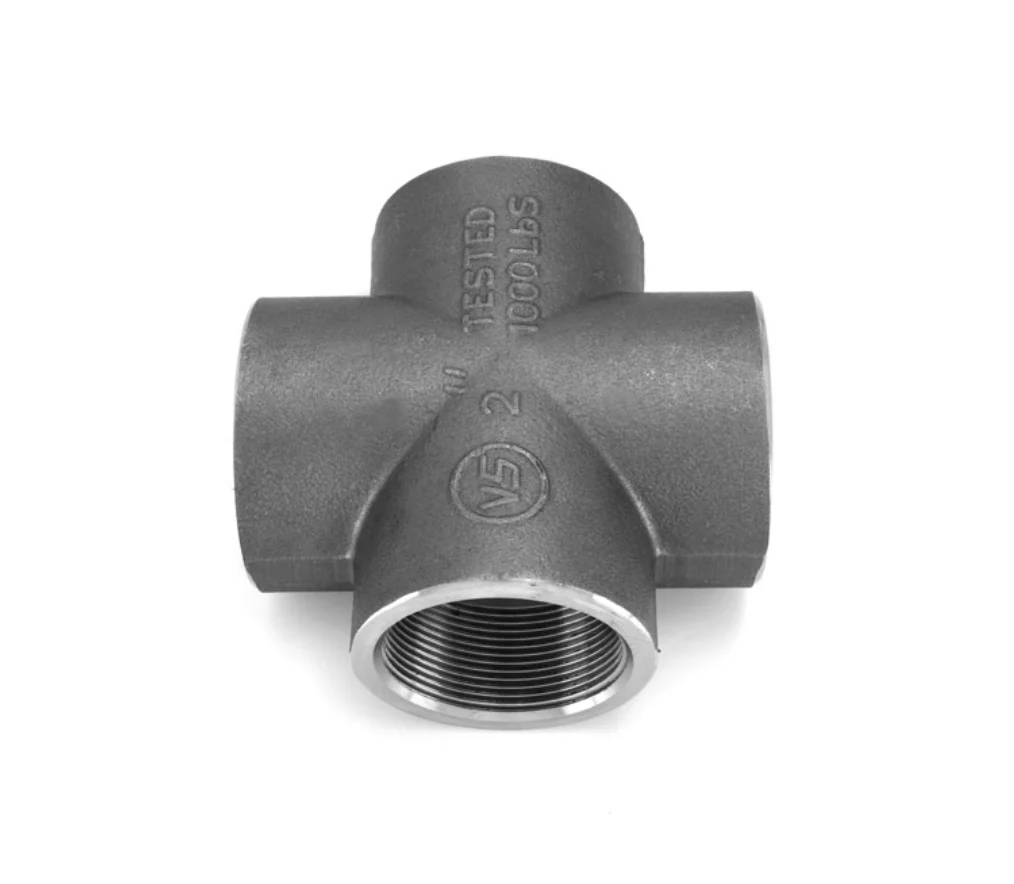

VS MS Forged Cross Threaded 1000 LBS
High-Strength Industrial Pipe Fitting for Multi-Directional Flow
Brand: VS | Material: High-Grade Forged Mild Steel
Class: 1000 LBS | Thread Type: BSP
Compliance: IS: 1239 (Part 2) 2011 / BS EN 10241-2000
The VS MS Forged Cross Threaded 1000 LBS is a heavy-duty fitting designed for high-pressure industrial applications requiring multi-directional flow. It enables four-way connections, ensuring efficient fluid distribution across pipelines.
Common Applications:
- Water Supply Systems
- Gas Pipelines
- Fire Protection & HVAC Systems
- Chemical & Power Plants
| Nominal Size | Centre to Face (C) | Minimum Outer DIA (D) |
|---|---|---|
| 1/2" (15 mm) | 32.00 mm | 27.00 mm |
| 3/4" (20 mm) | 35.00 mm | 32.50 mm |
| 1" (25 mm) | 43.00 mm | 39.50 mm |
| 1 1/4" (51 mm) | 51.00 mm | 49.00 mm |
| 1 1/2" (40 mm) | 52.00 mm | 56.00 mm |
| 2" (50 mm) | 64.00 mm | 68.00 mm |
