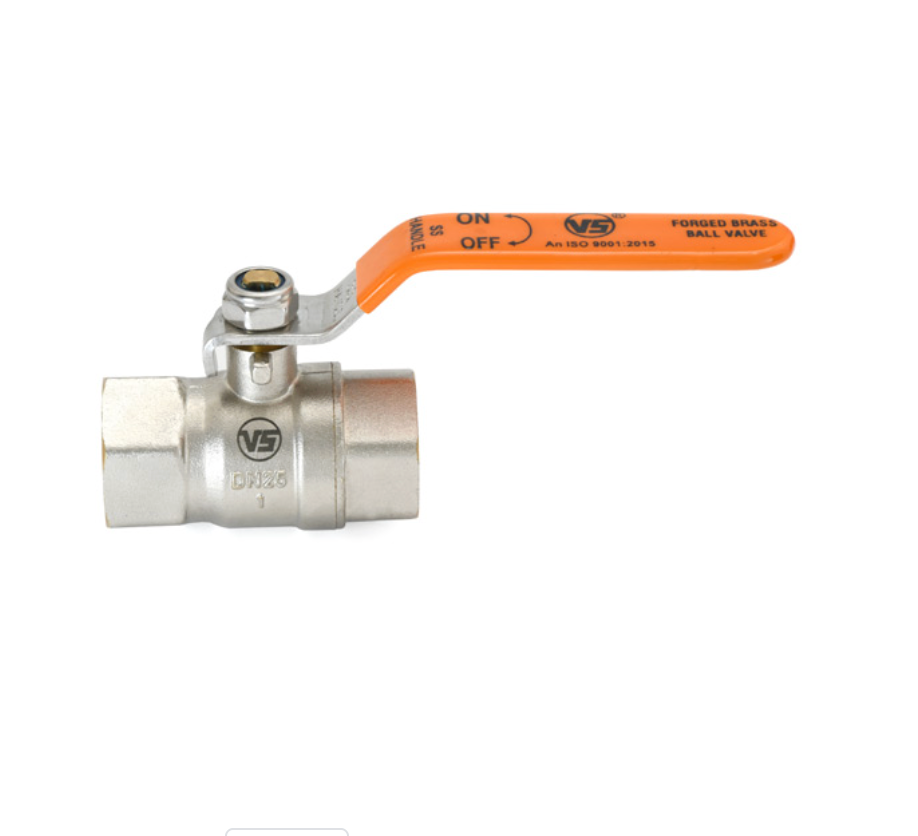

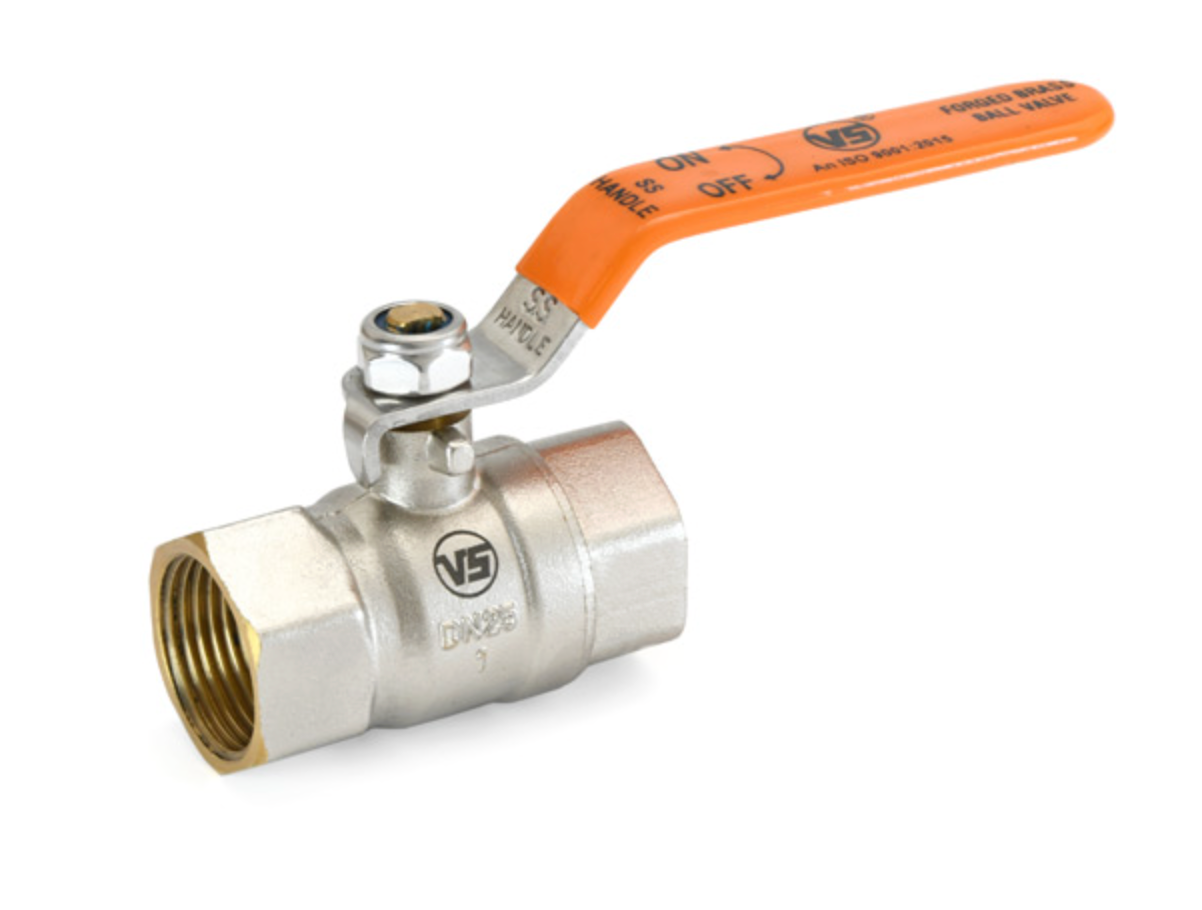

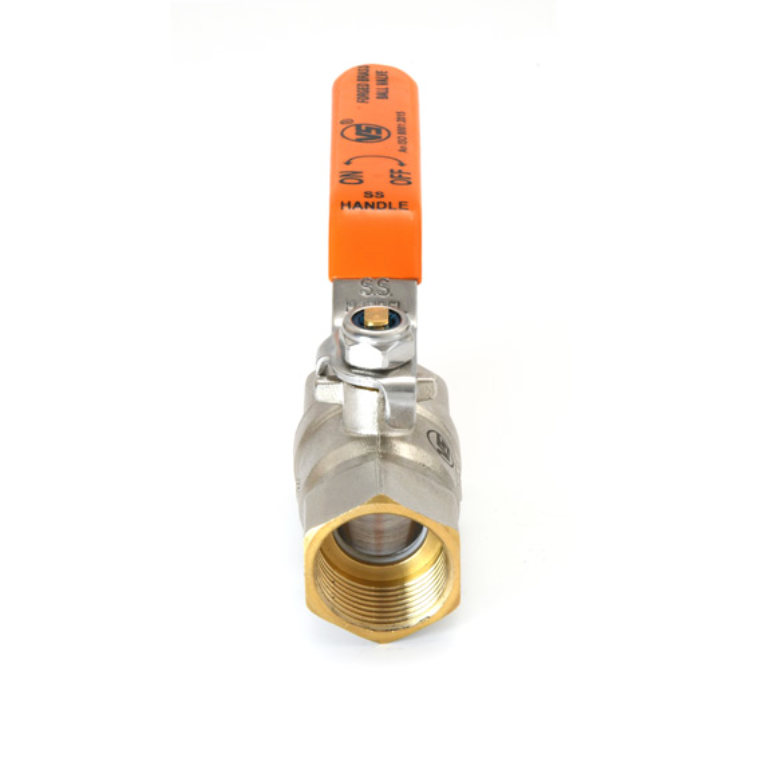

VS Forged Brass Ball Valve Threaded

VS Forged Brass Ball Valve Threaded (Screwed) is a quarter-turn, full-bore valve designed for reliable on/off control in water and oil systems. Manufactured from high-strength forged brass with precision threaded ends, it ensures leak-proof performance, smooth operation, and long service life in residential and industrial applications.

Key Features

High-quality forged brass construction with chrome finish
Full bore, two-piece design for maximum flow efficiency
Screwed female threaded ends as per IS 554 / BS 21 / ISO 7
Quarter-turn lever-operated mechanism
Hard chrome-plated forged brass ball with PTFE seats
Stainless steel handle for durability and ease of operation

Test Pressure

Shell Test Pressure: 25 kg/cm² (350 psig)
Seat Test Pressure: 16 kg/cm² (225 psig)
Maximum Working Temperature: 220°C
Suitable Media: Water, Oil

Applications

Industrial water and oil piping systems
Residential and commercial plumbing lines
HVAC and fan coil unit (FCU) connections
Utility and general flow control applications
