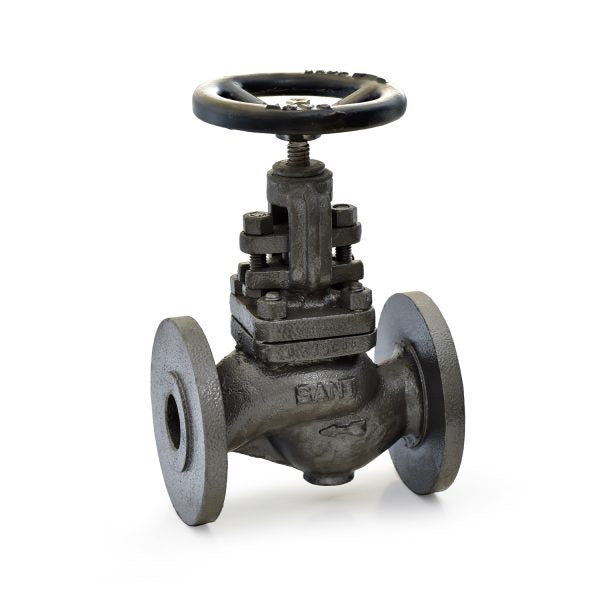

SANT CI GLOBE VALVE (CI-1A)

SANT Cast Iron Globe Valve

Product Description

• Standard: Manufactured as per BS:5152 / DIN 86251 for high reliability and performance.
• Pattern Type: Straight Pattern for efficient flow control.
• Pressure/Class/Rating: PN 16 for high-pressure applications.
• Body Material: Cast Iron (IBR 86 to 93 Gr.A) ensuring strength and durability.
• Design:
  • Bolted Bonnet for secure closure and easy maintenance.
  • Outside Screw & Yoke (OS&Y) Type with a Rising Stem for smooth operation.
• Seat Type: Renewable seat for extended service life.
• Disc Type: Renewable disc for better sealing and ease of replacement.
• Trim: Stainless Steel (AISI-410) for enhanced corrosion resistance.
• Gland Packing: Expanded Pure Flexible Graphite for superior sealing and leak prevention.
• End Connections: Flanged ends as per DIN 2533 RF (PN 16) (Undrilled) for secure installation.

Testing & Certification

• Pressure Rating: PN 16
• Body Test Pressure: 26 Kg/cm²g (Hydraulic)
• Seat Test Pressure: 16 Kg/cm²g (Hydraulic)
• Backseat Pressure: 16 Kg/cm²g (Hydraulic)
• Working Pressure: Max BOP 13 Kg/cm²g at 220°C (Steam Applications)
• Supplied with a Test Certificate in Form III-C as per IBR regulations.

Applications

This Cast Iron Globe Valve is ideal for:

• Steam and Thermal Fluid Systems: Handles high-pressure and high-temperature steam applications efficiently.
• Industrial Piping Systems: Used for precise throttling and flow regulation.
• Boiler Systems: Ensures controlled steam flow in industrial boiler installations.
• Petrochemical & Chemical Industries: Designed for durable performance in demanding environments.
