SANT C.I. Y STRAINER FLANGED END EPOXY COATED WITH SS SCREEN (CI16B)

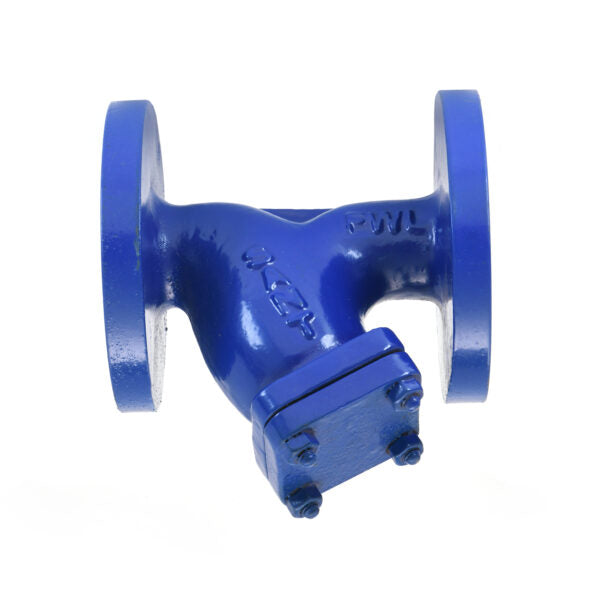

SANT Cast Iron Y Type Strainer

Product Description

• Pattern Type: Y Type for effective filtration and minimal pressure drop.
• Pressure Rating: PN16, suitable for high-pressure applications.
• Body Material: Cast Iron (IS:210 Gr.FG200) for superior durability and corrosion resistance.
• Design:
  • Bolted Cover for secure enclosure and easy maintenance.
  • Screen: Stainless Steel (SS AISI-304) with 1.2mm perforation for efficient debris filtration.
• End Connections: Flanged ends as per BS 10 Table F (Undrilled) for easy installation.

Testing & Certification

• Body Test Pressure: 24 kg/cm² (Hydraulic)
• Working Test Pressure: 16 kg/cm² (Hydraulic)
• Supplied with a Works’ Test Certificate for quality assurance.

Applications

The SANT Cast Iron Y Type Strainer is ideal for:

• Water Supply Systems: Protects pipelines and valves from debris and contaminants.
• Pumping Stations: Ensures uninterrupted water flow by filtering out particles.
• Irrigation Networks: Prevents clogging in pipes and distribution channels.
• Industrial Piping Systems: Used in HVAC, chemical, and water treatment plants.
