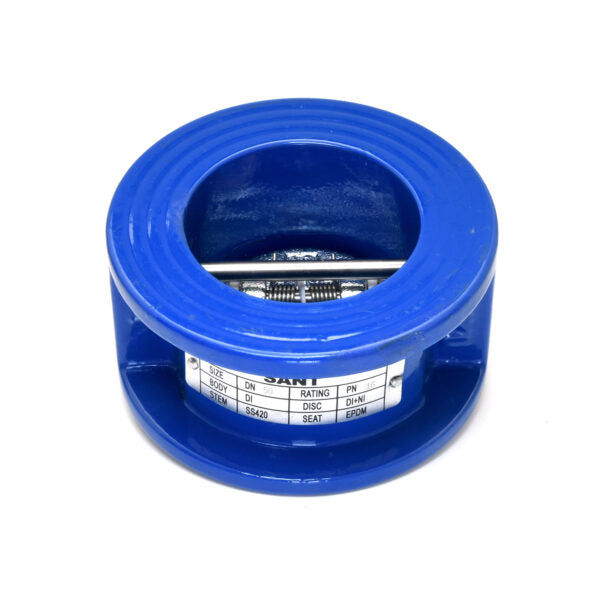

SANT C.I. DUAL PLATED NRV PN1.6 (DP)

SANT Dual Plate Wafer Check Valve

Product Description

• Pressure Rating: PN-16, designed for high-pressure applications.
• Body Material: Cast Iron for durability and resistance to wear.
• Design: Wafer Type, Spring Loaded for efficient backflow prevention.
• Seat Type: EPDM Rubber Lining for superior sealing and long-lasting performance.
• Disc Type: Ductile Iron Disc for enhanced strength and corrosion resistance.
• Trim Components:
  • Spring & Pins: Stainless Steel (SS 304) for enhanced durability and resistance to wear.
• End Connections: Wafer type, designed for clamping between flanges as per ASME B 16.5 Class-150, ensuring easy installation and secure fit.

Testing & Certification

• Body Test Pressure: 24 Kg/cm² (Hydraulic)
• Seat Test Pressure: 16 Kg/cm² (Hydraulic)
• Supplied with a Works’ Test Certificate for quality assurance and compliance.

Applications

The Sant Dual Plate Wafer Check Valve is ideal for:

• Water Supply & Distribution Systems: Prevents reverse flow and ensures consistent operation.
• Industrial Fluid Handling: Suitable for use in HVAC, chemical processing, and water treatment plants.
• Pumping Stations: Helps maintain pressure and prevent backflow.
• Power Plants & Refineries: Used in high-pressure piping systems.
