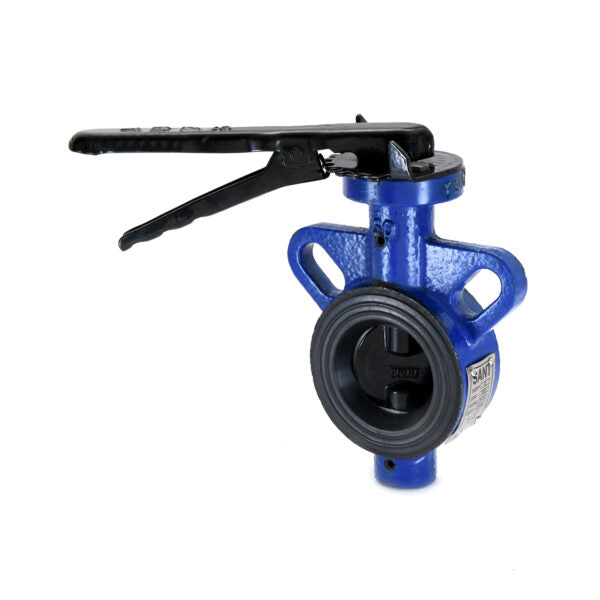

SANT C.I. BUTTERFLY VALVE PN1.6 with SG IRON DISC (CR21A/BFX)

Product: Sant C.I. Butterfly Valve PN1.6 with SG Iron Disc (CR21A/BFX)

• Type: Cast Iron Butterfly Valve (Short Pattern)
• Product Standard: IS:13095
• Pressure Rating: PN10/PN16
• Body Material: Cast Iron IS:210 Gr.FG200
• Description: Wafer type valve
• Seat Material: Nitrile / EPDM Lining
• Disc Material: SG Iron
• Shaft Material: AISI-410 (Stainless Steel)
• End Details: Suitable for insertion between flanges as per BS 10 Table D/E or ANSI B 16.1 Cl-125

Testing & Certification

• PN10 Ratings:
  • Body Test Pressure: 1.5MPa (218 Psig)
  • Seat Test Pressure: 1.1MPa (160 Psig)
• PN16 Ratings:
  • Body Test Pressure: 2.4MPa (348 Psig)
  • Seat Test Pressure: 1.8MPa (261 Psig)
• Supplied with a Works’ Test Certificate for every supply.

Applications

• Water Systems
