• Sant Ci Butterfly Valve
1 1

Vijay Sales Corporation

SANT C.I. BUTTERFLY VALVE PN 16 WITH SS-304 DISC (BFY)

SANT C.I. BUTTERFLY VALVE PN 16 WITH SS-304 DISC (BFY)

Rs. 1,875.50
Rs. 3,410.00 Rs. 1,875.50
Sale Sold out
Size

Product Description

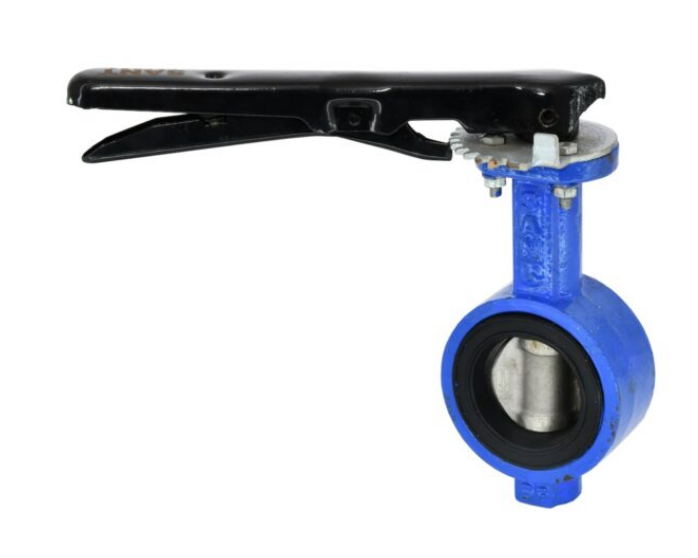

  • Product: Sant C.I. Butterfly Valve Wafer Type (Lever Operated)
  • Pattern Type: Replaceable Seat and Disc
  • Pressure Rating: PN16
  • Body Material: Cast Iron (IS:210 FG 200)
  • Lining Type: EPDM Lining
  • Disc Material: Stainless Steel (SS 304)
  • Stem Material: AISI-410 Stainless Steel
  • End Connections: Compatible with flanges as per ASME B 16.1 or Class-125

Testing & Certification

  • Body Test Pressure: 2.4 MPa (Hydraulic)
  • Seat Test Pressure: 1.6 MPa (Hydraulic)
  • Supplied with a Works’ Test Certificate for every product.
