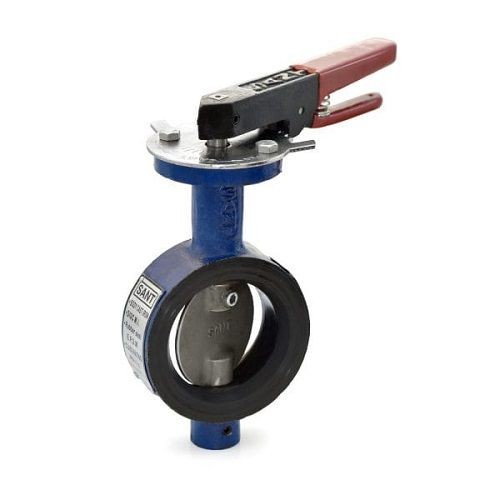

SANT C.I. BUTTERFLY VALVE PN 10 WITH SG IRON DISC (CR-23)

Product Description

• Product: 'SANT' Cast Iron Butterfly Valve (Lever Operated)
• Pattern Type: Short Pattern
• Pressure / Class / Rating: PN10
• Body Material: Cast Iron (IS:210 Gr.FG260)
• Valve Type: Wafer Type
• Seat Material: Nitrile / EPDM Lining
• Disc Material: SG Iron
• Trim: Stainless Steel (AISI-410)
• End Connections: Designed for insertion between flanges as per BS 10 Table D/E or ANSI B 16.1 CI-125

Testing & Certification

• Body Test Pressure: 1.5 MPa (218 Psig) Hydraulic
• Seat Test Pressure: 1.0 MPa (145 Psig) Hydraulic
• Supplied with a Works’ Test Certificate for assured quality and reliability.

Applications
This versatile valve is ideal for:

• Water Supply Systems
• Irrigation Networks
• Industrial Process Piping
• HVAC Systems
