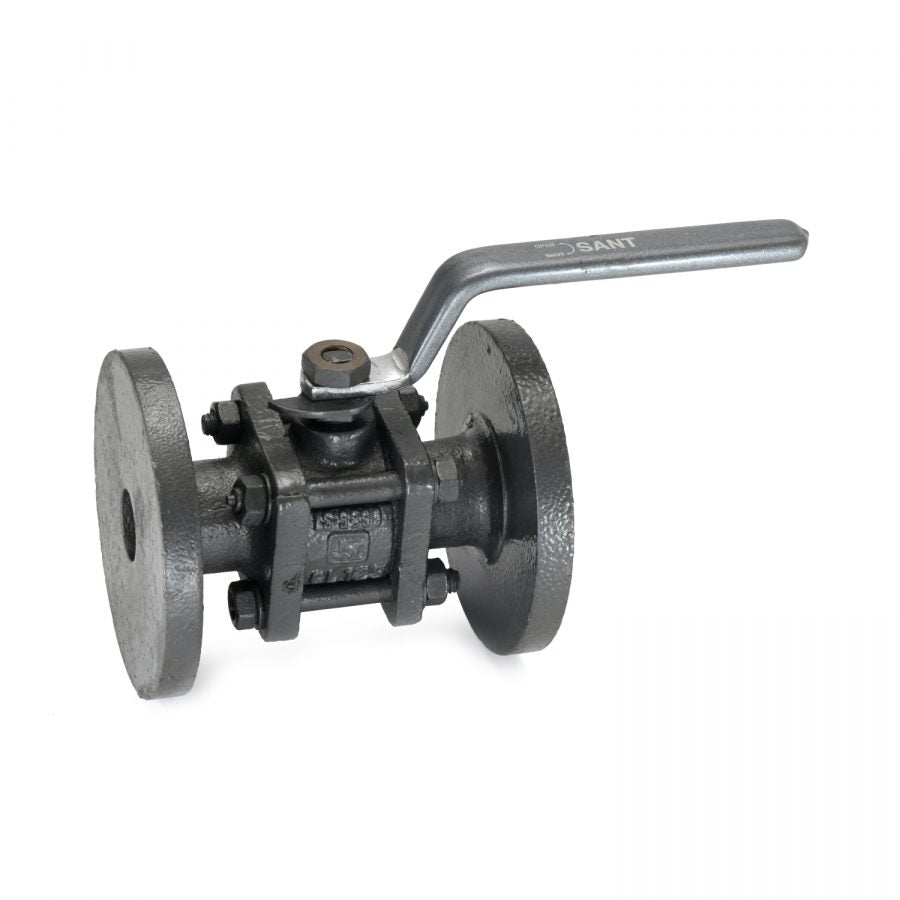

SANT C.I. BALL VALVE FLANGED 'ISI' (CI-18)

SANT Cast Iron Ball Valve

Product Description

• Standard: Conforms to IS:9890 Class 125 for exceptional quality.
• Body Material: Cast Iron (IS:210 Gr.FG220) for strength and long-lasting performance.
• Design: Three-piece design for enhanced durability and easy maintenance.
• Seat Type: Renewable Teflon seat for excellent sealing and wear resistance.
• Trim:
  • Stem: Stainless Steel (AISI-410) for corrosion resistance.
  • Ball: Stainless Steel (AISI-304) for high reliability under pressure.
• Gland Packing: Teflon Rings to ensure a leak-proof operation.
• End Connections: Flanged ends as per IS:3516-1966 undrilled or B.S.10 Table F for secure installation.

Testing & Certification

• Body Test Pressure: 300 Psig (21 bar g) Hydraulic
• Seat Test Pressure:
  • 220 Psig (15.4 bar g) Hydraulic
  • 100 Psig (6.9 bar g) Air
• Supplied with a Works’ Test Certificate for quality assurance and reliability.

Applications

This Cast Iron Ball Valve is ideal for:

• Industrial Piping Systems: Handles high-pressure and temperature efficiently.
• Water and Fluid Systems: Ensures smooth and reliable flow control.
