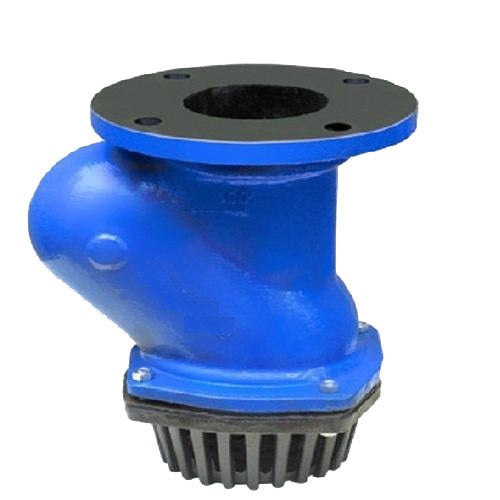

SANT C.I. BALL FOOT VALVE (BFV)

SANT Cast Iron Ball Foot Valve – Y Type Pattern

Product Description

• Pattern Type: Y Type Pattern for efficient fluid flow and reduced pressure drop.
• Pressure/Class/Rating: PN16, suitable for high-pressure applications.
• Body Material: Cast Iron (IS:210 FG 200) for durability and corrosion resistance.
• Ball Type: Mild Steel (MS) with Rubber Coating for enhanced sealing and longevity.
• Seat Ring: Nitrile Rubber for superior sealing performance.
• Strainer: Cast Iron (IS:210 FG 260) for durability and effective filtration.
• End Connections: Flanged ends as per IS:1538 for secure and standardized installation.

Testing & Certification

• Body Test Pressure: 2.4 MPa (Hydraulic)
• Seat Test Pressure: 1.6 MPa (Hydraulic)
• Supplied with a Works’ Test Certificate for quality assurance.

Applications

The Sant Cast Iron Ball Foot Valve is ideal for:

• Water Supply Systems: Prevents backflow and ensures smooth water flow.
• Pumping Systems: Maintains prime in pump installations.
• Irrigation Systems: Enhances water management efficiency.
• Industrial Fluid Handling: Used in various fluid transfer applications.
