VS MS Forged Tee Threaded 1000 LBS Black a premium pipe fitting designed for industrial and commercial applications. This tee connects three pipes—one inlet and two outlets—facilitating efficient fluid distribution in your piping systems.

Key Features:

Brand: VS
Material: High-Quality Forged Mild Steel
Product Dimensions: Available in various sizes to meet standard specifications (see chart below)
Pressure Class: 1000 LBS
Thread Type: BSP
Compliance: Meets IS:1239 (Part 2) 1992 standards

Applications:
✔ Oil & Gas | ✔ Water Distribution | ✔ HVAC Systems | ✔ Industrial Piping

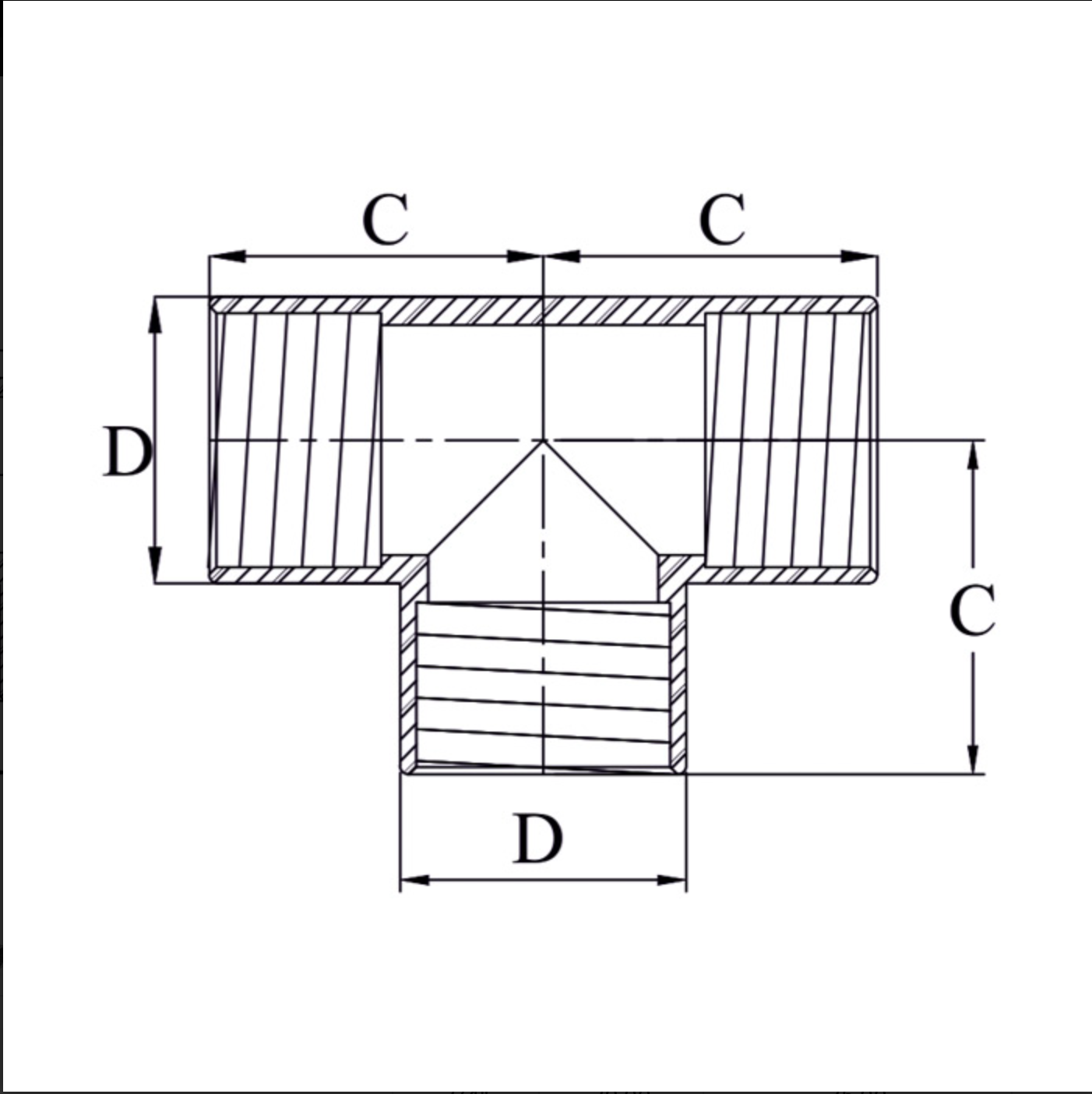

Nominal Size	Centre to Face (C)	Minimum Outer DIA (D)
1/8" (6 mm)	16.00 mm	15.00 mm
1/4" (8 mm)	22.00 mm	18.50 mm
3/8" (10 mm)	24.00 mm	22.00 mm
1/2" (15 mm)	32.00 mm	27.00 mm
3/4" (20 mm)	35.00 mm	32.50 mm
1" (25 mm)	43.00 mm	39.50 mm
1.1/4" (32 mm)	51.00 mm	49.00 mm
1.1/2" (40 mm)	52.00 mm	56.00 mm
2" (50 mm)	64.00 mm	68.00 mm
2.1/2" (65 mm)	76.00 mm	84.00 mm
3" (80 mm)	89.00 mm	98.00 mm
4" (100 mm)	115.00 mm	124.00 mm

All dimensions are in MM. Material is available in BSP threaded end connections.
