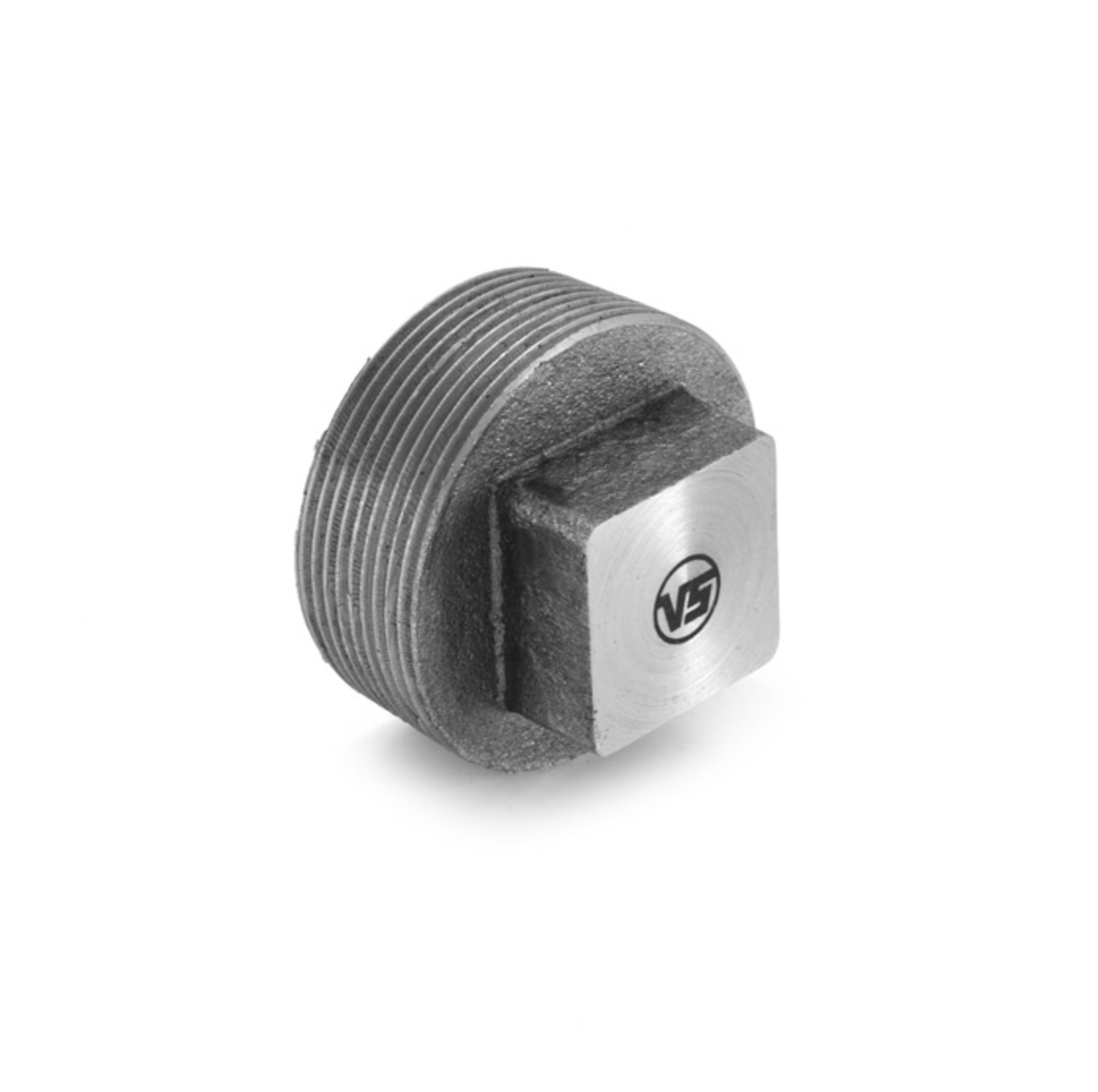

VS MS Forged Plug Threaded 1000 LBS
Secure and Durable Pipe Sealing Solution for High-Pressure Applications
Brand: VS | Material: High-Grade Forged Mild Steel
Class: 1000 LBS | Thread Type: BSP, BSPT, NPT
Compliance: IS:1239 (Part 2) 2011 / ASME B16.11-2009
The VS MS Plug Threaded 1000 is a premium-quality forged mild steel pipe fitting designed to securely seal the ends of piping systems, ensuring leak-proof performance in high-pressure applications. With a pressure rating of 1000 LBS, this threaded plug is ideal for various industrial and commercial uses.
Common Applications:
-
Industrial Piping Systems
-
Plumbing Installations
-
Hydraulic Systems
| Nominal Size | Min. Length Of Thread For Basic Gauge (L) | Approx. Size of Square (S) | Approx. Height of Square (H) |
|---|---|---|---|
| 3/8" (10 mm) | 10.10 mm | 11.00 mm | 10.00 mm |
| 1/2" (15 mm) | 13.20 mm | 13.00 mm | 10.00 mm |
| 3/4" (20 mm) | 14.50 mm | 14.00 mm | 12.00 mm |
| 1" (25 mm) | 16.80 mm | 17.00 mm | 12.00 mm |
| 1.1/4" (32 mm) | 19.10 mm | 22.00 mm | 16.00 mm |
| 1.1/2" (40 mm) | 19.10 mm | 27.00 mm | 16.00 mm |
| 2" (50 mm) | 23.40 mm | 32.00 mm | 19.19 mm |
| 2.1/2" (65 mm) | 26.70 mm | 37.00 mm | 19.00 mm |
| 3" (80 mm) | 29.80 mm | 37.00 mm | 22.00 mm |
All dimensions are in MM. Material is available in BSP threaded end connections.
