VS MS Union Forged Socket Weld 3000

Rs. 105.78

~~Rs. 246.00~~ Rs. 105.78

Sale Sold out

Size 1/4"(8mm) x Lower Size 3/8" (10mm) x Lower Size 1/2" (15mm) x Lower Size 3/4 " (20mm) x Lower Size 1" (25mm) x Lower Size 1 1/4" (32mm) x Lower Size 1 1/2" (40mm) x Lower Size 2" (50mm) x Lower Size

Quantity

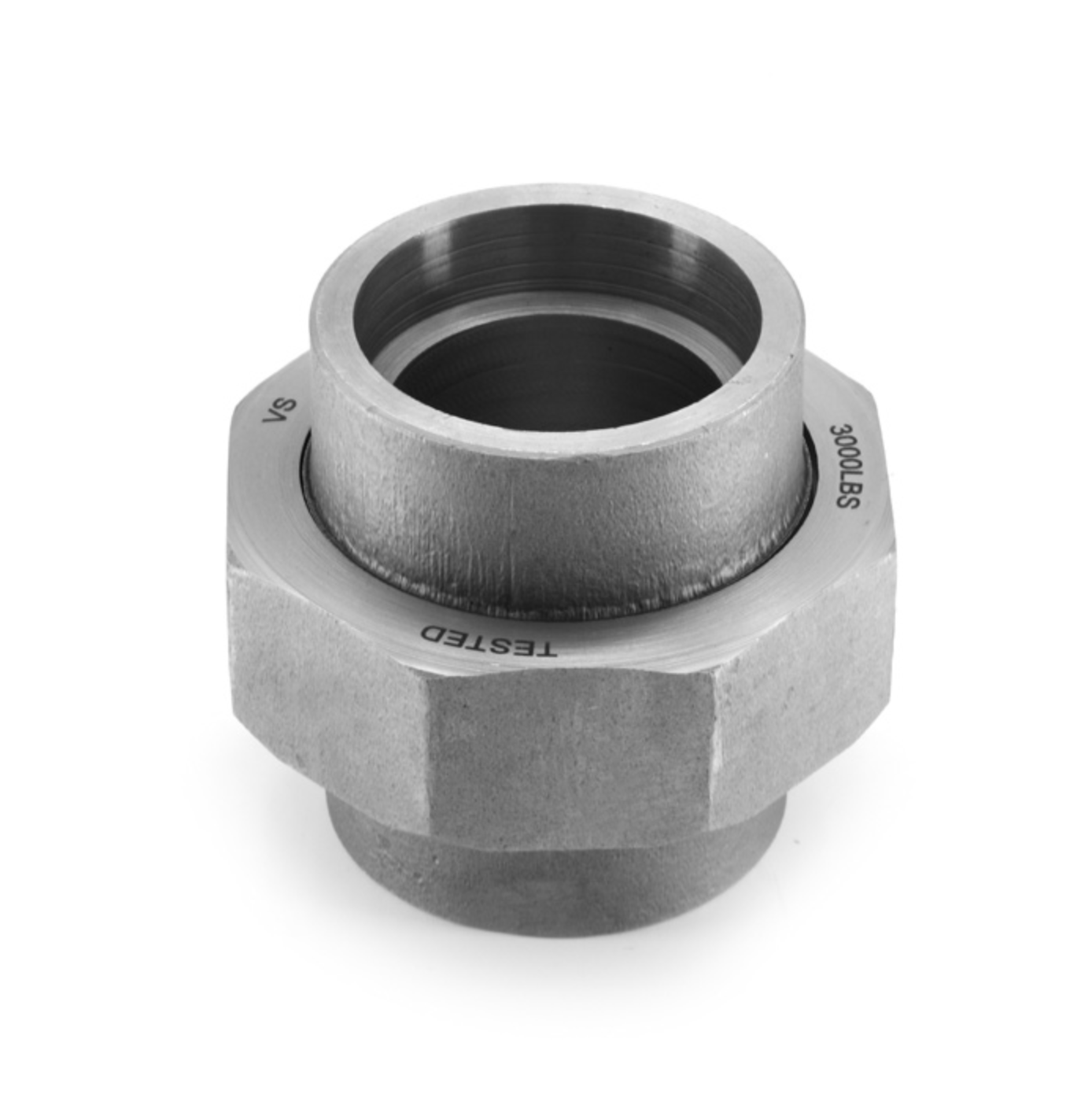

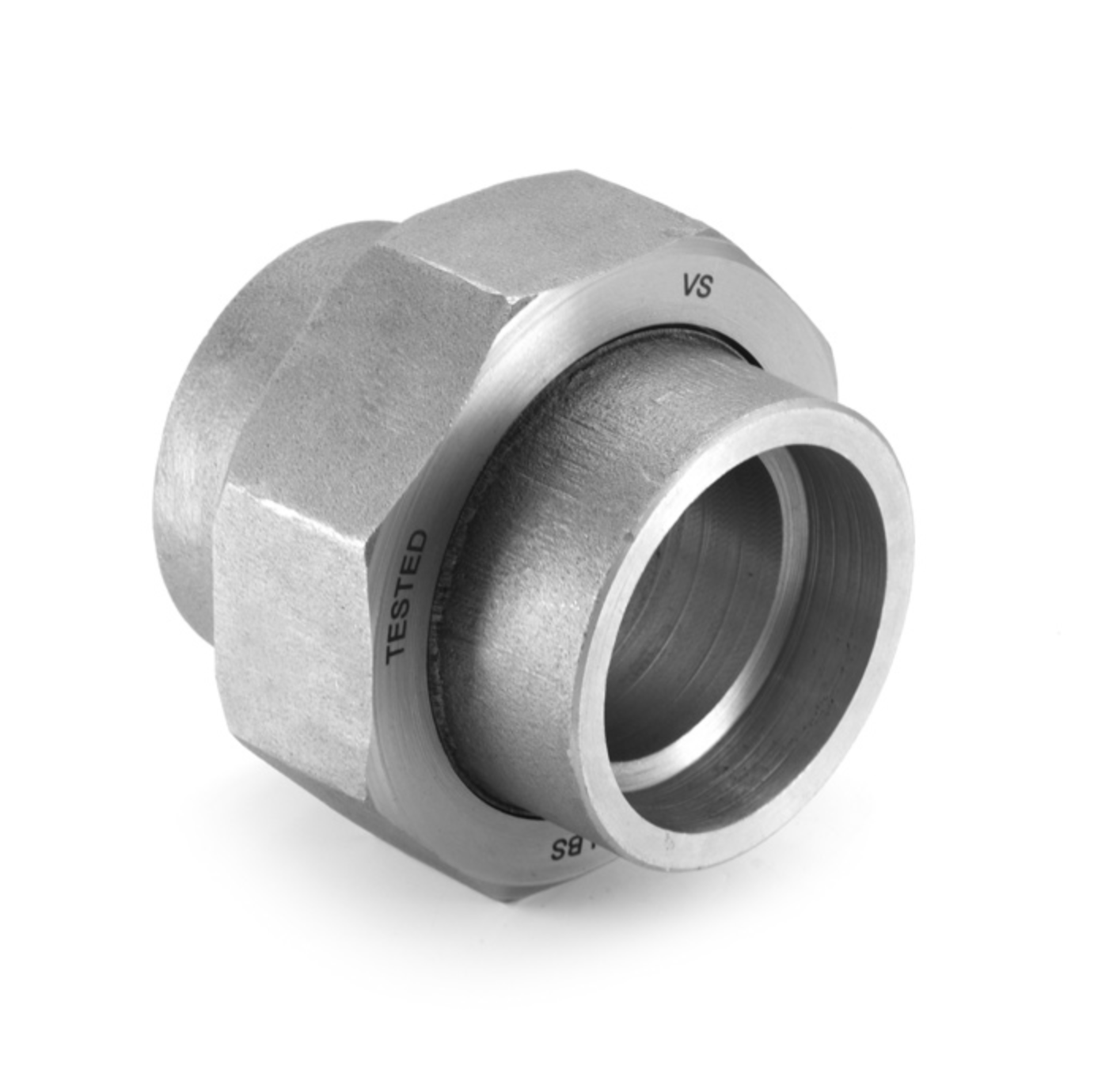

VS MS Union Forged Socket Weld 3000 LBS

High-Strength Socket Weld Union for Secure Industrial Piping

Brand: VS | Material: High-Grade Forged Mild Steel
Class: 3000 LBS | Connection Type: Socket Weld
Compliance: ASME B16.11 / IS:1239 (Part 2) 2011

The VS MS Union Forged Socket Weld 3000 LBS is designed to provide a leak-proof, high-pressure connection in industrial and commercial piping systems. This durable forged steel union ensures superior strength, corrosion resistance, and temperature endurance, making it ideal for oil & gas, chemical processing, HVAC, steam pipelines, and fire suppression systems.

Common Applications:

Oil & Gas Pipelines
Steam & Boiler Systems
Chemical & Petrochemical Processing
HVAC & Fire Protection Systems
Industrial & Manufacturing Plants

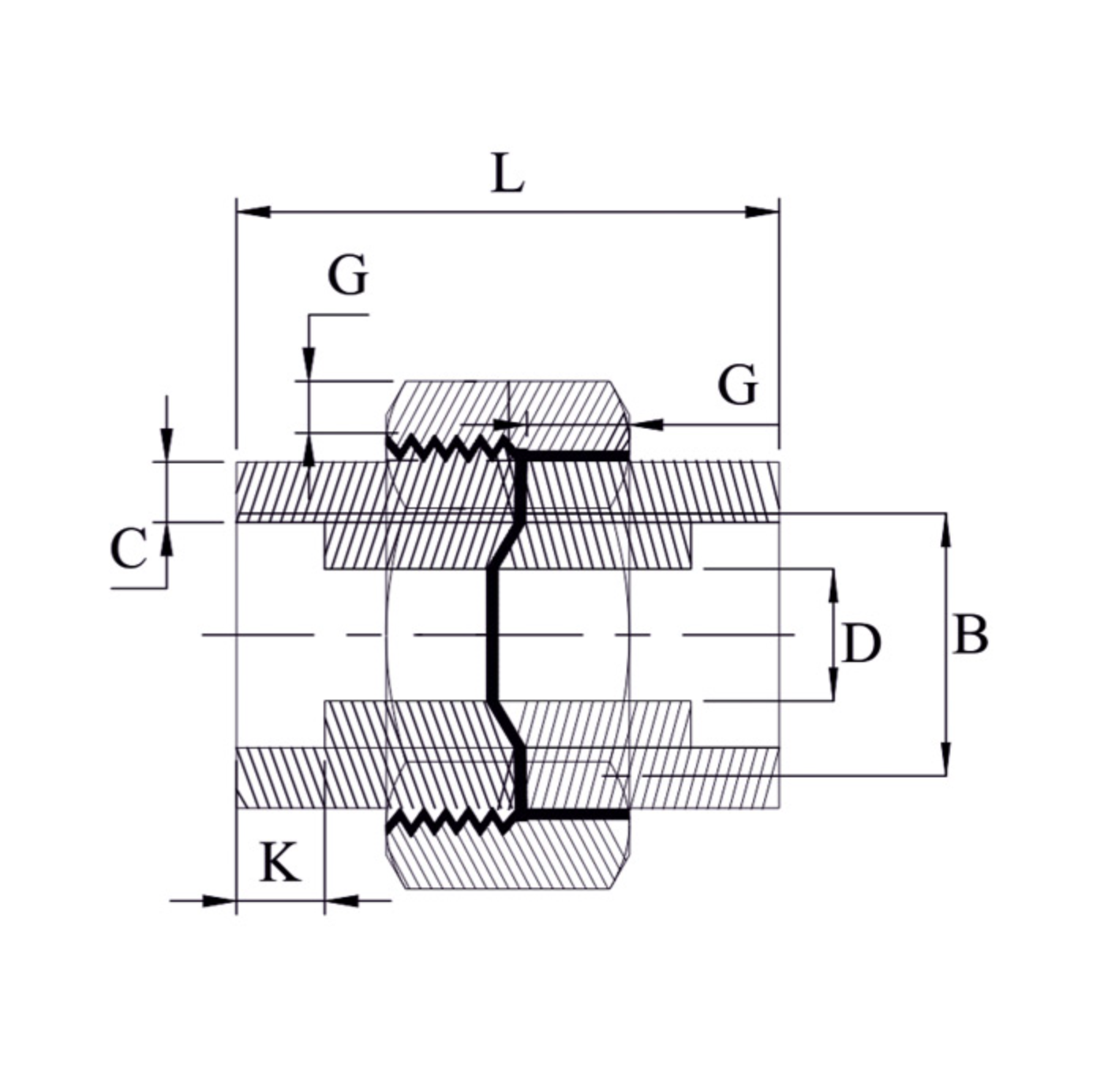

Nominal Size	Socket Bore Dia (B) Min.	Socket Bore Dia (B) Max.	Water Way Bore (D) Min.	Water Way Bore (D) Max.	Socket Wall Thickness (C) Min.	Depth of Socket (K) Min.	Nut (G) Min.	Length Assembly (L) Min.
1/4”	14.10	14.61	8.48	10.01	3.30	9.70	3.18	45.00
3/8”	17.53	18.03	11.76	13.28	3.51	9.70	3.43	50.00
1/2”	21.72	22.23	15.04	16.56	4.09	9.70	3.68	50.00
3/4”	27.05	27.56	20.17	21.69	4.27	12.70	4.06	60.00
1”	33.78	34.29	25.88	27.41	4.98	12.70	4.45	65.00
1 1/4”	42.55	43.05	34.29	35.81	5.28	12.70	5.21	75.00
1 1/2”	48.64	49.15	40.13	41.66	5.54	12.70	4.59	80.00
2”	61.11	61.62	51.74	63.26	6.05	15.70	6.35	90.00
2 1/2”	73.81	74.45	61.19	64.24	7.67	15.70	7.11	103.00
3”	89.78	90.42	76.40	79.45	8.30	15.70	8.00	108.90

All dimensions are in MM. Material is available in BSP threaded end connections.
