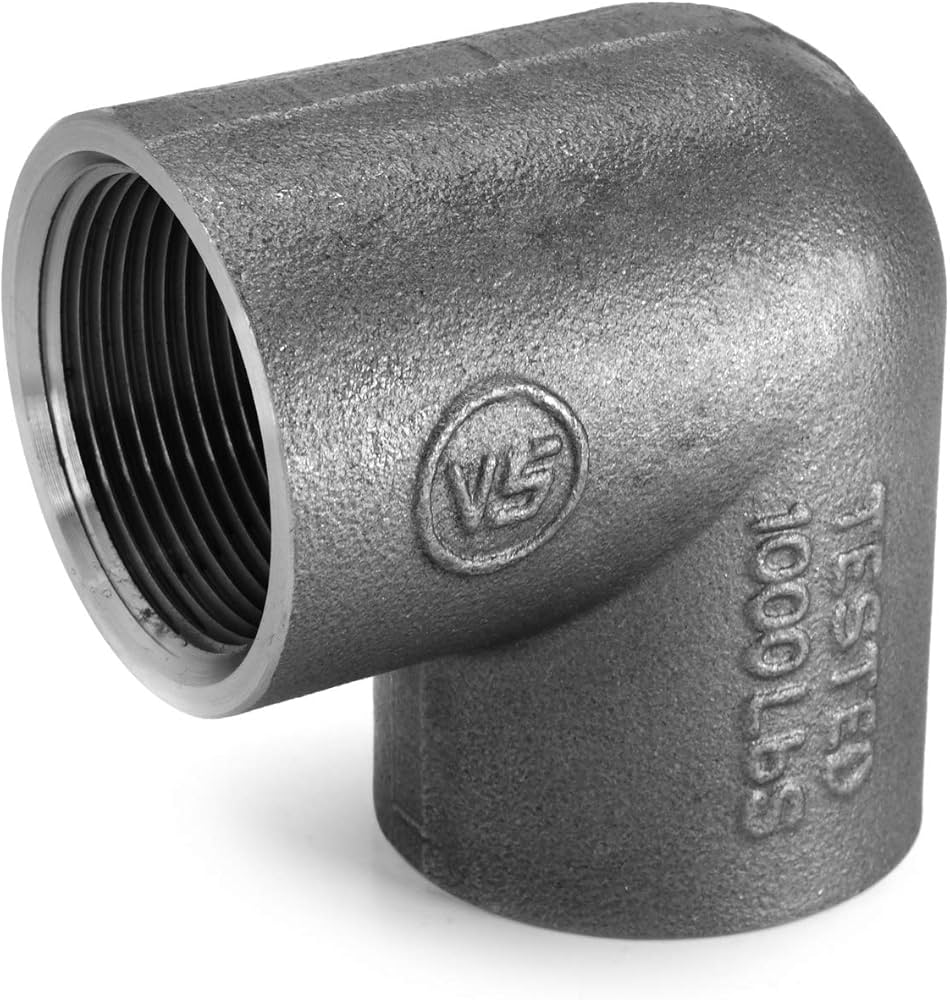

VS MS Forged Reducing Elbow Threaded 1000 LBS

High-Performance Pipe Fitting for Secure and Efficient Flow Transitions

Brand: VS | Material: High-Grade Forged Mild Steel
Class: 1000 LBS | Thread Type: BSP
Compliance: IS:1239 (Part 2) 2011 / ASME B16.11-2009

Common Applications:

Oil & Gas Pipelines
HVAC & Fire Protection Systems
Petrochemical & Chemical Plants
Construction & Plumbing

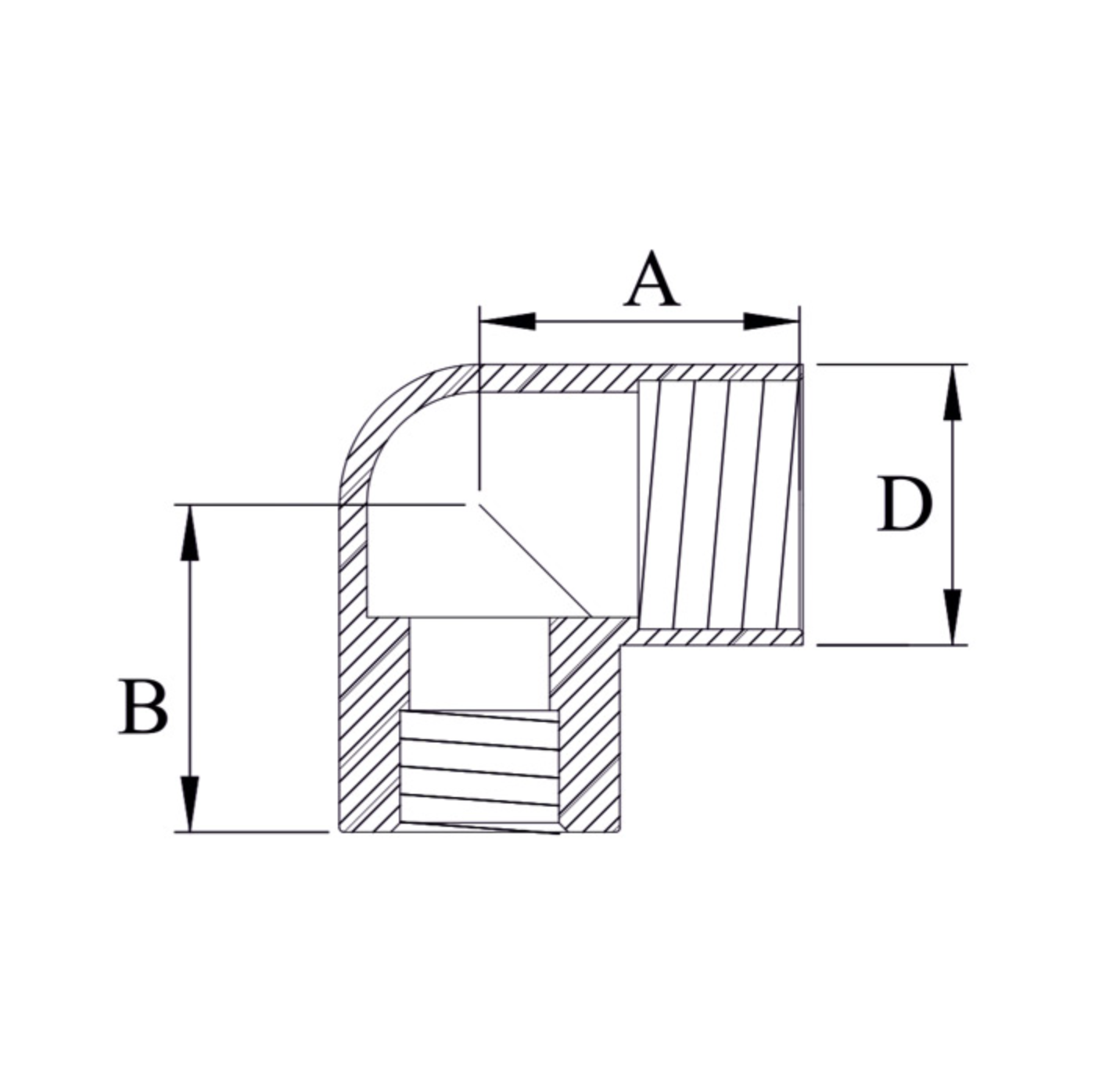

Nominal Size of Outlet	Min. Length of Centre to Face (A)	Min. Length of Centre to Face (B)	Minimum Outer DIA (D)
8×6	21.00 mm	22.00 mm	18.50 mm
10×6	21.00 mm	24.00 mm	22.00 mm
10×8	22.00 mm	24.00 mm	22.00 mm
15×8	25.00 mm	32.00 mm	27.00 mm
15×10	27.00 mm	32.00 mm	27.00 mm
20×8	27.00 mm	35.00 mm	32.50 mm
20×10	29.00 mm	35.00 mm	32.50 mm
20×15	32.00 mm	35.00 mm	32.50 mm
25×10	32.00 mm	43.00 mm	39.50 mm
25×15	35.00 mm	43.00 mm	39.50 mm
25×20	38.00 mm	43.00 mm	39.50 mm
32×15	38.00 mm	51.00 mm	49.00 mm
32×20	41.00 mm	51.00 mm	49.00 mm
32×25	44.00 mm	51.00 mm	49.00 mm
40×15	38.00 mm	52.00 mm	56.00 mm
40×20	41.00 mm	52.00 mm	56.00 mm
40×25	44.00 mm	52.00 mm	56.00 mm
40×32	48.00 mm	52.00 mm	56.00 mm
50×15	41.00 mm	64.00 mm	68.00 mm
50×20	44.00 mm	64.00 mm	68.00 mm
50×25	48.00 mm	64.00 mm	68.00 mm
50×32	52.00 mm	64.00 mm	68.00 mm
50×40	56.00 mm	64.00 mm	68.00 mm
65×40	60.00 mm	76.00 mm	84.00 mm
65×50	67.00 mm	76.00 mm	84.00 mm
80×25	60.00 mm	89.00 mm	98.00 mm
80×50	73.00 mm	89.00 mm	98.00 mm

All dimensions are in MM. Material is available in BSP threaded end connections.
