Vijay Sales Corporation
VS MS Elbow Forged Threaded 1000
VS MS Elbow Forged Threaded 1000
Regular price
Rs. 25.37
Regular price
Rs. 59.00
Sale price
Rs. 25.37
Unit price
/
per
Couldn't load pickup availability
VS MS Forged Elbow Threaded 1000 LBS
High-Strength Pipe Fitting for Directional Changes in Piping Systems
Brand: VS | Material: High-Grade Forged Mild Steel
Class: 1000 LBS | Thread Type: BSP
Compliance: IS: 1239 (Part 2) 2011 / BS EN 10241-2000
The VS MS Forged Elbow Threaded 1000 LBS is a heavy-duty pipe fitting designed to change the flow direction in piping systems while maintaining high pressure resistance. With precision threading, it ensures a secure, leak-proof connection, making it an ideal choice for industrial and commercial piping networks.

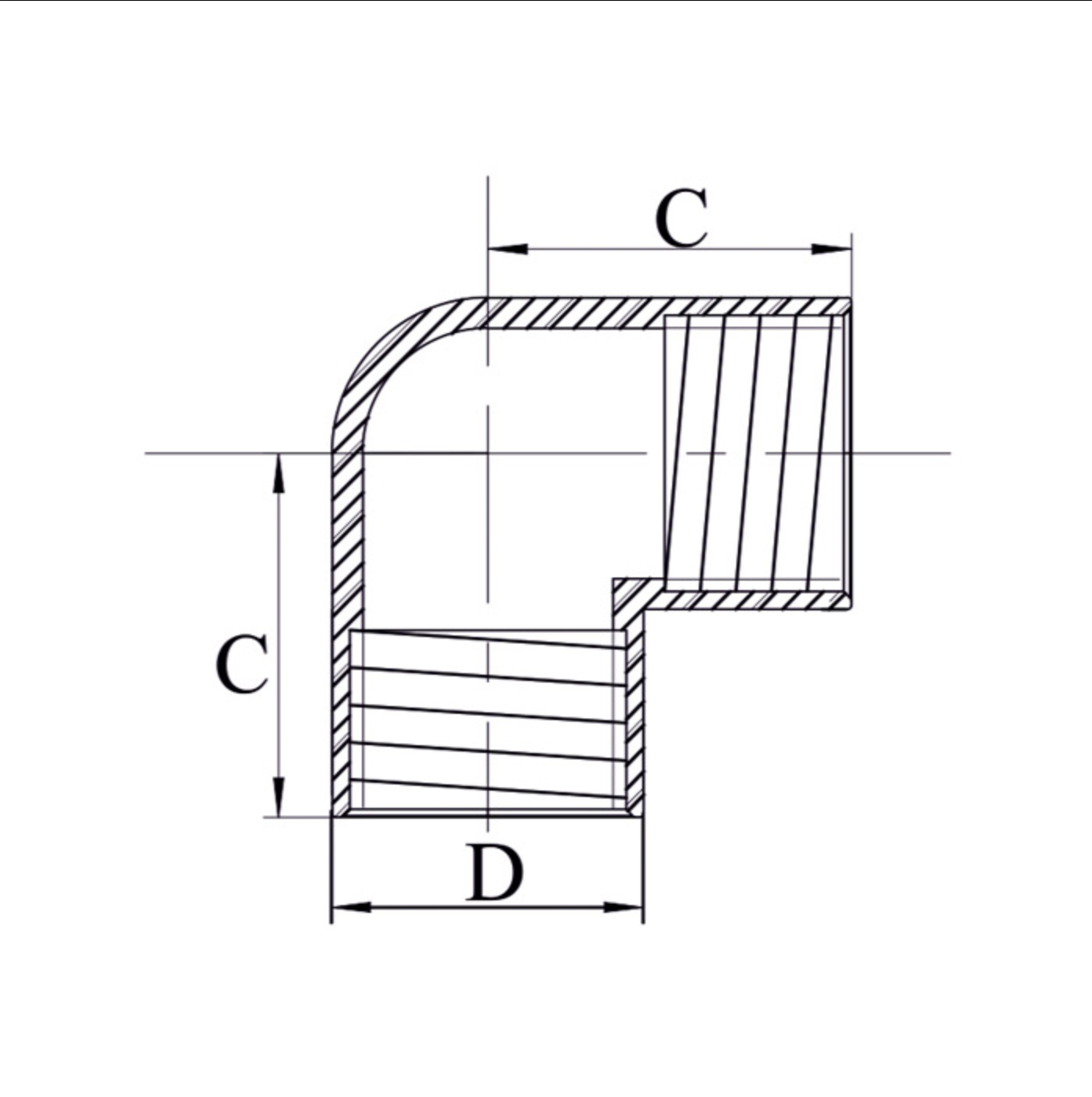

| Nominal Size | Centre to Face (C) | Minimum Outer DIA (D) |
|---|---|---|
| 1/8" (6 mm) | 16.00 mm | 15.00 mm |
| 1/4" (8 mm) | 22.00 mm | 18.50 mm |
| 3/8" (10 mm) | 24.00 mm | 22.00 mm |
| 1/2" (15 mm) | 32.00 mm | 27.00 mm |
| 3/4" (20 mm) | 35.00 mm | 32.50 mm |
| 1" (25 mm) | 43.00 mm | 39.50 mm |
| 1¼" (32 mm) | 51.00 mm | 49.00 mm |
| 1½" (40 mm) | 52.00 mm | 56.00 mm |
| 2" (50 mm) | 64.00 mm | 68.00 mm |
| 2½" (65 mm) | 76.00 mm | 84.00 mm |
| 3" (80 mm) | 89.00 mm | 98.00 mm |
All dimensions are in MM. Material is available in BSP threaded end connections.
